Enos. ventil Blue serija, dušilec zraka dohod plin, M5
SKU: 136032RIE
EAN: 4047322500050

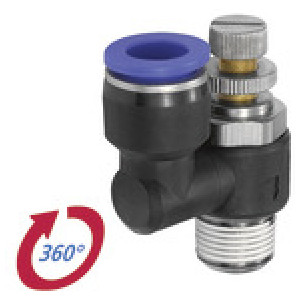

Throttle check valve »Blue Series«, Supply air throttle, M5 o., for hose exterior Ø 4 mm, pmax 10 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave 3 - 5 dni
17,40 €

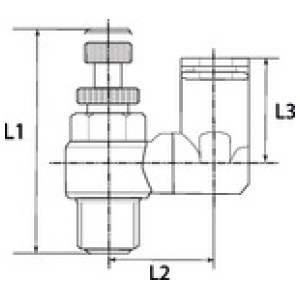

| Šifra | Min. delovni tlak [bar] | Navoj | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L3 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 135982RIE | -0.95 | R 1/4 | 8 | 14 | 20.5 | 27.0 | 48.0 | Čas dobave 3 - 5 dni | 19,36 € |  | |
| 135980RIE | -0.95 | R 1/4 | 4 | 14 | 20.5 | 27.0 | 48.0 | Čas dobave 3 - 5 dni | 22,98 € | | |
| 135984RIE | -0.95 | R 1/4 | 12 | 14 | 22.0 | 30.0 | 48.0 | Čas dobave 3 - 5 dni | 28,55 € | | |
| 136035RIE | -0.95 | R 1/8 | 6 | 12 | 18.0 | 26.5 | 42.0 | Čas dobave 3 - 5 dni | 16,37 € | | |
| 153635RIE | -0.95 | R 1/4 | 8 | 15 | 18.5 | 28.0 | 43.0 | Ni na zalogi | ? | Povpraševanje | |
| 153628RIE | -0.95 | M5 | 4 | 8 | 14.5 | 25.5 | 28.0 | Čas dobave 3 - 5 dni | 17,40 € | | |
| 136033RIE | -0.95 | M5 | 6 | 8 | 13.0 | 22.0 | 33.5 | Čas dobave 3 - 5 dni | 17,40 € | | |
| 136032RIE | 0 | M5 | 4 | 8 | 11.5 | 20.5 | 33.5 | Čas dobave 3 - 5 dni | 17,40 € | | |
| 136034RIE | -0.95 | R 1/8 | 4 | 12 | 18.0 | 26.5 | 42.0 | Čas dobave 3 - 5 dni | 16,37 € | | |
| 135983RIE | -0.95 | R 1/4 | 10 | 14 | 22.0 | 30.0 | 48.0 | Čas dobave 3 - 5 dni | 19,72 € | | |
| 135985RIE | -0.95 | R 3/8 | 10 | 19 | 23.0 | 31.0 | 53.0 | Čas dobave 3 - 5 dni | 34,70 € | | |
| 135979RIE | -0.95 | R 1/8 | 8 | 12 | 18.0 | 26.5 | 42.0 | Čas dobave 3 - 5 dni | 16,75 € | | |
| 135986RIE | -0.95 | R 3/8 | 12 | 19 | 23.0 | 31.0 | 53.0 | Čas dobave 3 - 5 dni | 35,44 € | | |
| 135981RIE | -0.95 | R 1/4 | 6 | 14 | 20.5 | 27.0 | 48.0 | Čas dobave 3 - 5 dni | 18,93 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 60 |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Navoj | M5 |
| Za cevi O.D. [mm] | 4 |
| L1 [mm] | 33.5 |
| L2 [mm] | 11.5 |
| L3 [mm] | 20.5 |
| a/f [mm] | 8 |
| Material | Plastic and nickel-plated brass |
