* slike so simbolične

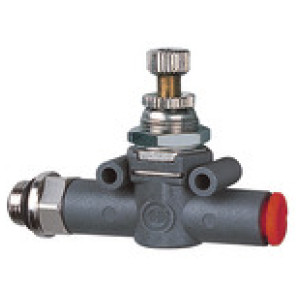

Enosmerni regulator tlaka tlaka, z navojem-za cev, M5 za cevØ4
SKU: 106717RIE
EAN: 4047322085137
Unidirectional flow control valve »lineonline«, Flow one-sided, Thread - hose, M5, for hose Ø 4 mm, Operating pressure max. 10 bar
Control the air intake and thus the speed of pneumatic units.
Čas dobave 3 - 5 dni
16,49 €

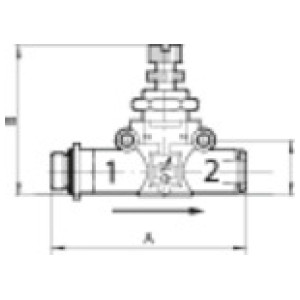

| Šifra | Navoj | Za cevi Ø [mm] | I [mm] | B [mm] | A [mm] | Pretok pri 6,3 bara [Nl/min] | Izhodni pretok pri 6,3 bar [Nl/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 106717RIE | M5 | 4 | 12.7 | 35.0 | 47.7 | 155 | 160 | Čas dobave 3 - 5 dni | 16,49 € |  | |
| 106718RIE | G 1/8 | 4 | 12.7 | 35.0 | 51.6 | 155 | 160 | Čas dobave 3 - 5 dni | 16,49 € | | |
| 106723RIE | G 3/8 | 8 | 18.7 | 49.0 | 72.2 | 850 | 950 | Čas dobave 3 - 5 dni | 23,02 € | | |
| 106720RIE | G 1/8 | 8 | 14.6 | 40.0 | 61.5 | 850 | 950 | Čas dobave 3 - 5 dni | 19,37 € | | |
| 106722RIE | G 1/4 | 8 | 18.7 | 49.0 | 70.6 | 850 | 950 | Čas dobave 3 - 5 dni | 20,14 € | | |
| 106721RIE | G 1/4 | 6 | 18.7 | 49.0 | 66.2 | 450 | 550 | Čas dobave 3 - 5 dni | 16,65 € | | |
| 106719RIE | G 1/8 | 6 | 14.6 | 40.0 | 58.5 | 450 | 550 | Čas dobave 3 - 5 dni | 16,49 € | |
Opis
Unidirectional flow control valve »lineonline«, Flow one-sided, Thread - hose, M5, for hose Ø 4 mm, Operating pressure max. 10 bar
Control the air intake and thus the speed of pneumatic units.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. obratovalni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 60 |
| Tesnilo | NBR |
| Telo | Technopolymer |
| Notranji deli | Nickel-plated brass, brass, technopolymer, stainless steel |
| Prilagoditev | Manual or screwdriver |

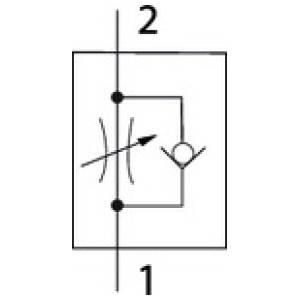

| Pnevmatski simboli | On housing |
| Navoj | M5 |
| Za cevi Ø [mm] | 4 |
| A [mm] | 47.7 |
| B [mm] | 35.0 |
| I [mm] | 12.7 |
| Pretok pri 6,3 bara [Nl/min] | 155 |
| Izhodni pretok pri 6,3 bar [Nl/min] | 160 |
| Ffunkcija | outgoing air restriction |
