* slike so simbolične
Enosmerni regulator tlaka, za cev-za cev, za cev Ø4
SKU: 106714RIE
EAN: 9041301
Unidirectional flow control valve »lineonline«, Flow one-sided, Hose - hose, for hose Ø 4 mm, Operating pressure max. 10 bar
Control the air intake and thus the speed of pneumatic units.
Čas dobave: Predvidoma 3 - 5 dni
14,69 €

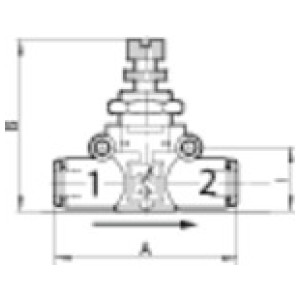

| Šifra | Za cevi Ø [mm] | I [mm] | B [mm] | A [mm] | Pretok pri 6,3 bara [Nl/min] | Izhodni pretok pri 6,3 bar [Nl/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 106715RIE | 6 | 14.6 | 40.0 | 49.4 | 450 | 550 | Čas dobave: Predvidoma 3 - 5 dni | 14,69 € |  | |
| 106716RIE | 8 | 18.7 | 49.0 | 57.3 | 850 | 950 | Čas dobave: Predvidoma 3 - 5 dni | 18,10 € | | |
| 106714RIE | 4 | 12.7 | 35.0 | 42.0 | 155 | 160 | Čas dobave: Predvidoma 3 - 5 dni | 14,69 € | |
Opis
Unidirectional flow control valve »lineonline«, Flow one-sided, Hose - hose, for hose Ø 4 mm, Operating pressure max. 10 bar
Control the air intake and thus the speed of pneumatic units.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. obratovalni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 60 |
| Tesnilo | NBR |
| Telo | Technopolymer |
| Notranji deli | Nickel-plated brass, brass, technopolymer, stainless steel |
| Prilagoditev | Manual or screwdriver |

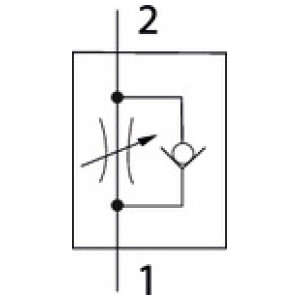

| Pnevmatski simboli | On housing |
| Za cevi Ø [mm] | 4 |
| A [mm] | 42.0 |
| B [mm] | 35.0 |
| I [mm] | 12.7 |
| Pretok pri 6,3 bara [Nl/min] | 155 |
| Izhodni pretok pri 6,3 bar [Nl/min] | 160 |
| Ffunkcija | outgoing air restriction |
