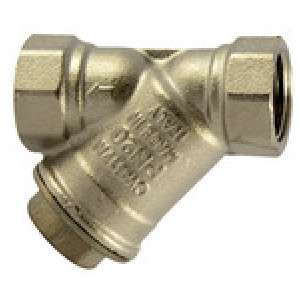

Filter nikljana medenina, G 1, DN 25, šrina mrežice 0.05 mm
SKU: 141013RIE
EAN: 4047322547390
Dirt strainer, nickel-plated brass, Sieve insert mesh width 0.05 mm, Operating temp. -20 °C to 110 °C, G 1, DN 25, PN max. 20 bar
Suitable for domestic water services, heating and air conditioning plants or compressed air systems. Not suitable for steam.
Čas dobave 3 - 5 dni
34,03 €

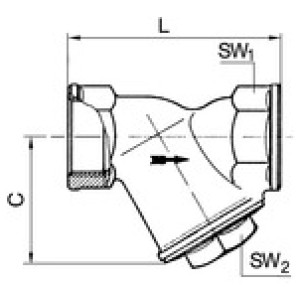

| Šifra | Navoj | DN | a/f 2 [mm] | a/f 1 [mm] | C [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 141013RIE | G 1 | 25 | 32 | 38 | 56.0 | 87.0 | Čas dobave 3 - 5 dni | 34,03 € |  | |
| 141009RIE | G 1/4 | 8 | 20 | 18 | 40.0 | 55.0 | Čas dobave 3 - 5 dni | 14,19 € | | |
| 141010RIE | G 3/8 | 10 | 20 | 21 | 40.0 | 55.0 | Čas dobave 3 - 5 dni | 14,19 € | | |
| 141015RIE | G 1 1/2 | 40 | 38 | 54 | 73.0 | 106.0 | Čas dobave 3 - 5 dni | 64,61 € | | |
| 141014RIE | G 1 1/4 | 32 | 36 | 47 | 64.0 | 96.0 | Čas dobave 3 - 5 dni | 49,82 € | | |
| 141012RIE | G 3/4 | 20 | 27 | 31 | 48.0 | 70.0 | Čas dobave 3 - 5 dni | 22,86 € | | |
| 141011RIE | G 1/2 | 15 | 20 | 25 | 40.0 | 58.0 | Čas dobave 3 - 5 dni | 14,88 € | | |
| 141016RIE | G 2 | 50 | 46 | 67 | 88.5 | 126.0 | Čas dobave 3 - 5 dni | 105,87 € | |
Opis
Dirt strainer, nickel-plated brass, Sieve insert mesh width 0.05 mm, Operating temp. -20 °C to 110 °C, G 1, DN 25, PN max. 20 bar
Suitable for domestic water services, heating and air conditioning plants or compressed air systems. Not suitable for steam.
Tehnični podatki in specifikacije
| Ohišje | Nickel-plated brass |
| Max. obratovalni tlak [bar] | 20 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 110 |
| Navoj | G 1 |
| DN | 25 |
| Zaslon | Stainless steel |
| Tesnilo | NBR O-ring |
| Glava | Nickel-plated brass |
| Standardni navoj | G thread acc. to ISO 228-1, tolerance class B |
| L [mm] | 87.0 |
| C [mm] | 56.0 |
| a/f 1 [mm] | 38 |
| a/f 2 [mm] | 32 |
| Velikost mrežice [mm] | 0.05 |
