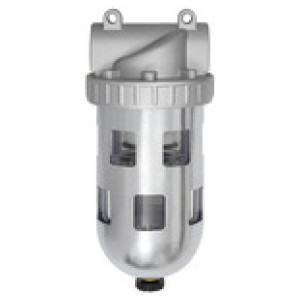

Filter »Stinard«, PC zbiralnik, Zaščitna kletka, Velikost 5, G 2
SKU: 100971RIE
EAN: 4047322110518
Filter »Standard«, PC container and protective cage, 60 µm, Size 5, G 2, Input pressure max. 16 bar, Med./ambient temp. max. 60 °C
Centrifugal separators with a sintered filter element.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Filter »Stinard«, PC zbiralnik, Zaščitna kletka, Velikost 5, G 2
Merjenje pretoka: At P2 = 6 bar and pressure drop Δp = 1 bar
Odtok kondenzata: Semi-automatic
Ohišje: Die-cast zinc, painted silver
Posoda: Polycarbonate container with protective cage
Serija: Standard

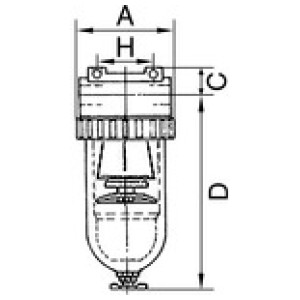

H [mm]: 120.0
A [mm]: 148.0
D [mm]: 394.4
Pretok [l/min]: 30000
Odtok kondenzata: Semi-automatic
Ohišje: Die-cast zinc, painted silver
Posoda: Polycarbonate container with protective cage
Serija: Standard
H [mm]: 120.0
A [mm]: 148.0
D [mm]: 394.4
Pretok [l/min]: 30000
| Šifra | Merjenje pretoka | Navoj | Velikost | Rang filtra [µm] | DN | C [mm] | H [mm] | A [mm] | D [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100967RIE | At P2 = 6 bar and pressure drop Δp = 1 bar | G 3/4 | 3 | 5 | 20 | 26.5 | 50.0 | 102.0 | 169.9 | 4000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 100966RIE | At P2 = 6 bar and pressure drop Δp = 1 bar | G 1/2 | 3 | 5 | 15 | 18.0 | 50.0 | 79.0 | 168.4 | 4000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100969RIE | At P2 = 6 bar and pressure drop Δp = 1 bar | G 1 1/4 | 4 | 40 | 40 | 36.5 | 105.0 | 125.0 | 243.4 | 12500 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100964RIE | At P2 = 6 bar and pressure drop Δp = 1 bar | G 3/8 | 1 | 5 | 6 | 14.0 | 38.0 | 48.0 | 131.6 | 800 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100970RIE | At P2 = 6 bar and pressure drop Δp = 1 bar | G 1 1/2 | 4 | 40 | 45 | 36.5 | 105.0 | 125.0 | 243.4 | 12500 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100963RIE | At P2 = 6 bar and pressure drop Δp = 1 bar | G 1/4 | 1 | 5 | 6 | 14.0 | 38.0 | 48.0 | 131.6 | 800 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 206301RIE | At P2 = 6 bar and pressure drop ?p = 1 bar | G 3/8 | 2 | 5 | 10 | 16.0 | 50.0 | 70.0 | 145.7 | 3100 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100965RIE | At P2 = 6 bar and pressure drop Δp = 1 bar | G 3/8 | 2 | 40 | 10 | 16.0 | 50.0 | 70.0 | 145.7 | 3100 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100968RIE | At P2 = 6 bar and pressure drop Δp = 1 bar | G 1 | 3 | 5 | 25 | 26.5 | 50.0 | 90.0 | 169.9 | 4000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100971RIE | At P2 = 6 bar and pressure drop Δp = 1 bar | G 2 | 5 | 60 | 55 | 41.0 | 120.0 | 148.0 | 394.4 | 30000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Filter »Standard«, PC container and protective cage, 60 µm, Size 5, G 2, Input pressure max. 16 bar, Med./ambient temp. max. 60 °C
Centrifugal separators with a sintered filter element.
Tehnični podatki in specifikacije
| Navoj | G 2 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 5 |
| Ohišje | Die-cast zinc, painted silver |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Pretok [l/min] | 30000 |
| Odtok kondenzata | Semi-automatic |
| DN | 55 |
| Rang filtra [µm] | 60 |
| Posoda | Polycarbonate container with protective cage |
| A [mm] | 148.0 |
| C [mm] | 41.0 |
| D [mm] | 394.4 |
| H [mm] | 120.0 |
| Serija | Standard |
| Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 1 bar |
