* slike so simbolične
Filter umazan., lahka med., G 2, DN 50, šrina mrežice 0.2 mm
SKU: 140993RIE
EAN: 4047322547192

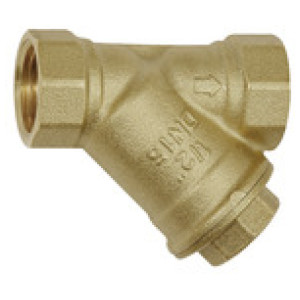

Dirt strainer, bright brass, Sieve insert mesh width 0.2 mm, Operating temp. -20 °C to 110 °C, G 2, DN 50, PN max. 20 bar
Suitable for domestic water services, heating and air conditioning plants or compressed air systems. Not suitable for steam.
Čas dobave: Predvidoma 3 - 5 dni
83,35 €
ali od 15,19 € / mesec
Izračunaj obrok
Obrestno financiranje
- 15,19 € x 6 mesecev
- 30,05 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

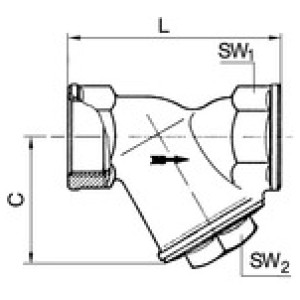

| Šifra | Navoj | a/f 2 [mm] | DN | a/f 1 [mm] | C [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 140992RIE | G 1 1/2 | 38 | 40 | 57 | 73.0 | 106.0 | Čas dobave: Predvidoma 3 - 5 dni | 50,20 € |  | |
| 140990RIE | G 1 | 32 | 25 | 38 | 56.0 | 87.0 | Čas dobave: Predvidoma 3 - 5 dni | 25,10 € | | |
| 140989RIE | G 3/4 | 27 | 20 | 31 | 48.0 | 70.0 | Čas dobave: Predvidoma 3 - 5 dni | 16,25 € | | |
| 140988RIE | G 1/2 | 20 | 15 | 25 | 40.0 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 10,02 € | | |
| 140987RIE | G 3/8 | 20 | 10 | 21 | 40.0 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,69 € | | |
| 140991RIE | G 1 1/4 | 36 | 32 | 47 | 64.0 | 96.0 | Čas dobave: Predvidoma 3 - 5 dni | 37,76 € | | |
| 140986RIE | G 1/4 | 20 | 8 | 18 | 40.0 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,69 € | | |
| 140993RIE | G 2 | 46 | 50 | 67 | 89.0 | 126.0 | Čas dobave: Predvidoma 3 - 5 dni | 83,35 € | |
Opis
Dirt strainer, bright brass, Sieve insert mesh width 0.2 mm, Operating temp. -20 °C to 110 °C, G 2, DN 50, PN max. 20 bar
Suitable for domestic water services, heating and air conditioning plants or compressed air systems. Not suitable for steam.
Tehnični podatki in specifikacije
| Ohišje | Brass |
| Max. obratovalni tlak [bar] | 20 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 110 |
| Navoj | G 2 |
| DN | 50 |
| Zaslon | Stainless steel |
| Tesnilo | NBR O-ring |
| Glava | Brass |
| Standardni navoj | G thread acc. to ISO 228-1, tolerance class B |
| L [mm] | 126.0 |
| C [mm] | 89.0 |
| a/f 1 [mm] | 67 |
| a/f 2 [mm] | 46 |
| Velikost mrežice [mm] | 0.2 |
