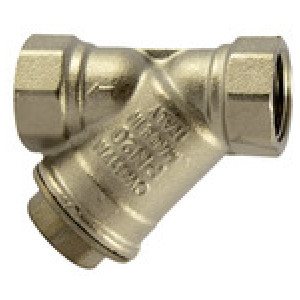

Filter umazan. nikljana med., G 1, DN 25, šrina mrežice 0.3 mm
SKU: 141005RIE
EAN: 4047322547314
Dirt strainer, nickel-plated brass, Sieve insert mesh width 0.3 mm, Operating temp. -20 °C to 110 °C, G 1, DN 25, PN max. 20 bar
Suitable for domestic water services, heating and air conditioning plants or compressed air systems. Not suitable for steam.

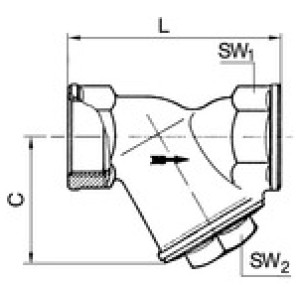

Šifra | Navoj | DN | a/f 2 [mm] | a/f 1 [mm] | C [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|
141006RIE | G 1 1/4 | 32 | 36 | 47 | 64.0 | 96.0 | Čas dobave: Predvidoma 3 - 5 dni | 47,34 € | ||
141001RIE | G 1/4 | 8 | 20 | 18 | 40.0 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,57 € | ||
141008RIE | G 2 | 50 | 46 | 67 | 88.5 | 126.0 | Čas dobave: Predvidoma 3 - 5 dni | 102,68 € | ||
141003RIE | G 1/2 | 15 | 20 | 25 | 40.0 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,26 € | ||
141007RIE | G 1 1/2 | 40 | 38 | 54 | 73.0 | 106.0 | Čas dobave: Predvidoma 3 - 5 dni | 61,65 € | ||
141004RIE | G 3/4 | 20 | 27 | 31 | 48.0 | 70.0 | Čas dobave: Predvidoma 3 - 5 dni | 20,89 € | ||
141002RIE | G 3/8 | 10 | 20 | 21 | 40.0 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,57 € | ||
141005RIE | G 1 | 25 | 32 | 38 | 56.0 | 87.0 | Čas dobave: Predvidoma 3 - 5 dni | 32,06 € |
Opis
Dirt strainer, nickel-plated brass, Sieve insert mesh width 0.3 mm, Operating temp. -20 °C to 110 °C, G 1, DN 25, PN max. 20 bar
Suitable for domestic water services, heating and air conditioning plants or compressed air systems. Not suitable for steam.
Tehnični podatki in specifikacije
Ohišje | Nickel-plated brass |
Max. obratovalni tlak [bar] | 20 |
Min. delovna temperatura [°C] | -20 |
Max. delovna temperatura [°C] | 110 |
Navoj | G 1 |
DN | 25 |
Zaslon | Stainless steel |
Tesnilo | NBR O-ring |
Glava | Nickel-plated brass |
Standardni navoj | G thread acc. to ISO 228-1, tolerance class B |
L [mm] | 87.0 |
C [mm] | 56.0 |
a/f 1 [mm] | 38 |
a/f 2 [mm] | 32 |
Velikost mrežice [mm] | 0.3 |
