Fini filter Bavaria, za pitno vodo, preizk. na DVGW, 90 µm, R 1
SKU: 101415RIE
EAN: 4047322011921

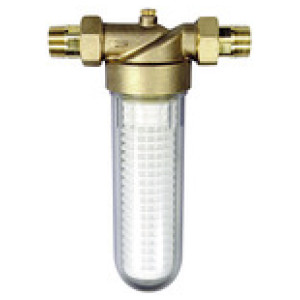

Fine filter »Bavaria« for potable water, DVGW tested, 90 µm, R 1, Input pressure max. 16 bar, Operating temperature max. 30 °C
For filtering drinking and domestic water in addition to well, process and cooling water for once-through cooling systems. These filters protect the water pipes and all water-carrying parts of the system on the downstream side against malfunctions and corrosion damage.
Obrestno financiranje
- 16,47 € x 12 mesecev
- 32,22 € x 6 mesecev
- 63,72 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Pretok KVS vrednost [m³/h] | DN | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 101414RIE | R 3/4 | 4 | 20 | 206.0 | Čas dobave: Predvidoma 3 - 5 dni | 175,24 € |  | |
| 101415RIE | R 1 | 5.5 | 25 | 206.0 | Čas dobave: Predvidoma 3 - 5 dni | 176,41 € | | |
| 101416RIE | R 1 1/4 | 6 | 32 | 220.0 | Čas dobave: Predvidoma 3 - 5 dni | 191,78 € | |
Opis
Fine filter »Bavaria« for potable water, DVGW tested, 90 µm, R 1, Input pressure max. 16 bar, Operating temperature max. 30 °C
For filtering drinking and domestic water in addition to well, process and cooling water for once-through cooling systems. These filters protect the water pipes and all water-carrying parts of the system on the downstream side against malfunctions and corrosion damage.
Tehnični podatki in specifikacije
| Navoj | R 1 |
| Max. vhodni tlak [bar] | 16 |
| Max. delovna temperatura [°C] | 30 |
| Ohišje | Brass |
| Rang filtra [µm] | 90 |
| Cedilna košarica | Special impact-resistant plastic |
| Pretok KVS vrednost [m³/h] | 5.5 |
| DN | 25 |

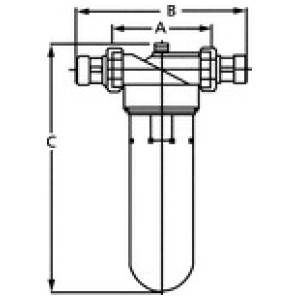

| A [mm] | 120.0 |
| B [mm] | 206.0 |
| C [mm] | 300.0 |
| Serija | Bavaria |
