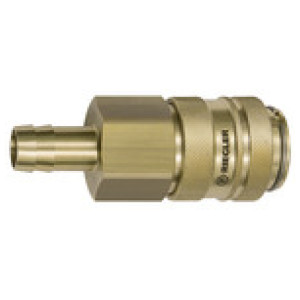

Hitre spojke I.D. 19,  zunanji navoj medenina,Fi cevi I.D. 16 slika
Hitre spojke I.D. 19,  zunanji navoj medenina,Fi cevi I.D. 16 slika

* slike so simbolične

Hitre spojke I.D. 19, zunanji navoj medenina,Fi cevi I.D. 16

SKU: 141567RIE
EAN: 4047322568395

Quick-connect coupling I.D. 19, Bright brass, Sleeve I.D. 16, Operating pressure 0 - 35 bar, Med. / ambient temp. -20 °C to 100 °C

"

Single-sided blocking and quick connect coupling with extremely high flow performance.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

These quick disconnect couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Machine and plant engineering, manufacturing industry, workshops.

"
Čas dobave: Predvidoma 3 - 5 dni
250,25 €
ali od 12,22 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 12,22 € x 24 mesecev
  • 23,39 € x 12 mesecev
  • 45,76 € x 6 mesecev
  • 90,51 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Povezava Zaloga Cena Nakup Natisni
141568RIE I.D. 19
Čas dobave: Predvidoma 3 - 5 dni
250,25 € Natisni
141569RIE I.D. 25
Čas dobave: Predvidoma 3 - 5 dni
266,92 € Natisni
141567RIE I.D. 16
Čas dobave: Predvidoma 3 - 5 dni
250,25 € Natisni

Opis

Quick-connect coupling I.D. 19, Bright brass, Sleeve I.D. 16, Operating pressure 0 - 35 bar, Med. / ambient temp. -20 °C to 100 °C

"

Single-sided blocking and quick connect coupling with extremely high flow performance.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

These quick disconnect couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Machine and plant engineering, manufacturing industry, workshops.

"

Tehnični podatki in specifikacije

DN 19
Povezava I.D. 16
a/f [mm] 41
Dolžina [mm] 114.0
Delovni tlak 0 - 35 bar
Ohišje Brass with a bare metal surface
Tesnilo NBR
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 100
Min. sobna temperatura [°C] -20
Max. sobna temperatura [°C] 100
Pretok 8700 l/min (air)
Vzmet Stainless steel
Rokav Brass with a bare metal surface
Navojni kos Brass with a bare metal surface
Ventil Brass with a bare metal surface
Merjenje pretoka at 6 bar and Δp = 0.5 bar
