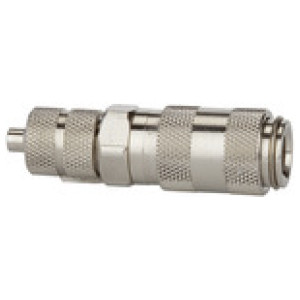

Hitre spojke I.D. 2.7, Inox 1.4404, cev 5x3 slika
Hitre spojke I.D. 2.7, Inox 1.4404, cev 5x3 slika

* slike so simbolične

Hitre spojke I.D. 2.7, Inox 1.4404, cev 5x3

SKU: 107114RIE
EAN: 4047322403931

Quick-connect coupling I.D. 2.7, Stainless steel 1.4404, Hose connection 5x3, Operating pressure 0 - 35 bar, Temp. -15°C to 200°C

"

One-hand quick disconnect couplings, one side sealing, extremely compact with a large bore and only a small pressure drop.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology, offshore.

"
Čas dobave 3 - 5 dni
188,56 €
ali od 17,69 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 17,69 € x 12 mesecev
  • 34,60 € x 6 mesecev
  • 68,42 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Povezava Zaloga Cena Nakup Natisni
107115RIE Hose connection 6x4
Čas dobave 3 - 5 dni
188,64 € Natisni
107113RIE Hose connection 4x3
Čas dobave 3 - 5 dni
188,56 € Natisni
107114RIE Hose connection 5x3
Čas dobave 3 - 5 dni
188,56 € Natisni

Opis

Quick-connect coupling I.D. 2.7, Stainless steel 1.4404, Hose connection 5x3, Operating pressure 0 - 35 bar, Temp. -15°C to 200°C

"

One-hand quick disconnect couplings, one side sealing, extremely compact with a large bore and only a small pressure drop.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology, offshore.

"

Tehnični podatki in specifikacije

DN 2.7
Povezava Hose connection 5x3
a/f [mm] 9
Dolžina [mm] 34.0
Delovni tlak 0 to 35 bar, maximum static working pressure (non-pulsating)
Ohišje Stainless steel 1.4404
Tesnilo FKM
Min. temperatura medija [°C] -15
Max. temperatura medija [°C] 200
Min. sobna temperatura [°C] -15
Max. sobna temperatura [°C] 200
Pretok 165 l/min (air)
Krogla Stainless steel 1.4404
Vzmet Stainless steel 1.4404
Telo ventila Stainless steel 1.4404
Rokav Stainless steel 1.4404
Pritrdilni obroč Stainless steel 1.4404
Merjenje pretoka at 6 bar and Δp = 0.5 bar
