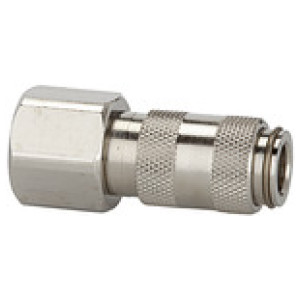

Hitre spojke I.D. 2.7,ponikljana medenina, M5 notranji navoj

SKU: 107089RIE
EAN: 4047322057950

Quick-connect coupling I.D. 2.7, nickel-plated brass, M5 IT, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C

"

One-hand quick disconnect couplings, one side sealing, extremely compact with a large bore and only a small pressure drop.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive.

"
Čas dobave: Predvidoma 3 - 5 dni
14,65 €
Primerjaj z ostalimi
Šifra Povezava a/f [mm] Dolžina [mm] Zaloga Cena Nakup Natisni
107090RIE G 1/8 IT 12 28.0
Čas dobave: Predvidoma 3 - 5 dni
11,70 € Natisni
107089RIE M5 IT 9 25.0
Čas dobave: Predvidoma 3 - 5 dni
14,65 € Natisni

Opis

Quick-connect coupling I.D. 2.7, nickel-plated brass, M5 IT, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C

"

One-hand quick disconnect couplings, one side sealing, extremely compact with a large bore and only a small pressure drop.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive.

"

Tehnični podatki in specifikacije

DN 2.7
Povezava M5 IT
a/f [mm] 9
Dolžina [mm] 25.0
Delovni tlak 0 to 35 bar, maximum static working pressure (non-pulsating)
Ohišje Nickel-plated brass
Tesnilo NBR
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 100
Min. sobna temperatura [°C] -20
Max. sobna temperatura [°C] 100
Pretok 165 l/min (air)
Krogla Stainless steel
Vzmet Stainless steel
Telo ventila Nickel-plated brass
Rokav Nickel-plated brass
Pritrdilni obroč Stainless steel
Merjenje pretoka at 6 bar and Δp = 0.5 bar
