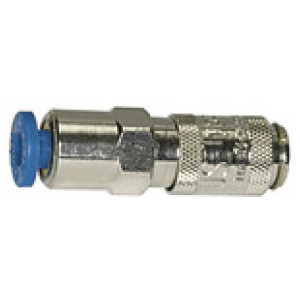

Hitre spojke I.D. 2.7ponikljana medenina, push-in 4 mm
SKU: 107096RIE
EAN: 4047322207522
Quick-connect coupling I.D. 2.7 nickel-plated brass, push-in connection 4 mm, Operating pressure 0 - 35 bar, Temp. -20°C to 100°C
"One-hand quick disconnect couplings, one side sealing, extremely compact with a large bore and only a small pressure drop.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive.
"| Šifra | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|
| 107096RIE | Čas dobave: Predvidoma 3 - 5 dni | 17,95 € |  |
Opis
Quick-connect coupling I.D. 2.7 nickel-plated brass, push-in connection 4 mm, Operating pressure 0 - 35 bar, Temp. -20°C to 100°C
"One-hand quick disconnect couplings, one side sealing, extremely compact with a large bore and only a small pressure drop.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive.
"Tehnični podatki in specifikacije
| DN | 2.7 |
| Povezava | 4 mm |
| a/f [mm] | 10 |
| Dolžina [mm] | 35.0 |
| Delovni tlak | 0 to 35 bar, maximum static working pressure (non-pulsating) |
| Ohišje | Nickel-plated brass |
| Tesnilo | NBR |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 100 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 100 |
| Pretok | 165 l/min (air) |
| Krogla | Stainless steel |
| Vzmet | Stainless steel |
| Telo ventila | Nickel-plated brass |
| Rokav | Nickel-plated brass |
| Pritrdilni obroč | Stainless steel |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
