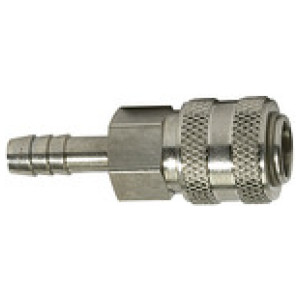

Hitre spojke I.D. 5 »connect line« cev I.D. 6 slika
Hitre spojke I.D. 5 »connect line« cev I.D. 6 slika

* slike so simbolične

Hitre spojke I.D. 5 »connect line« cev I.D. 6

SKU: 115637RIE
EAN: 4047322059282

Quick-connect coupling I.D. 5 »connect line« nickel-plated brass, Sleeve I.D. 6, Operating pressure 0-35 bar, Temp. -20°C to 100°C

"

Low-priced, one-hand quick disconnect couplings, one side sealing, compact with a large bore and only a small pressure drop.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

Areas of application: Pneumatic system, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology.

"
Čas dobave: Predvidoma 3 - 5 dni
7,05 €
Primerjaj z ostalimi
Šifra Povezava Dolžina [mm] Zaloga Cena Nakup Natisni
115635RIE I.D. 4 41.9
Čas dobave: Predvidoma 3 - 5 dni
7,05 € Natisni
115639RIE I.D. 9 46.9
Čas dobave: Predvidoma 3 - 5 dni
7,05 € Natisni
115637RIE I.D. 6 46.9
Čas dobave: Predvidoma 3 - 5 dni
7,05 € Natisni

Opis

Quick-connect coupling I.D. 5 »connect line« nickel-plated brass, Sleeve I.D. 6, Operating pressure 0-35 bar, Temp. -20°C to 100°C

"

Low-priced, one-hand quick disconnect couplings, one side sealing, compact with a large bore and only a small pressure drop.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

Areas of application: Pneumatic system, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology.

"

Tehnični podatki in specifikacije

DN 5
Povezava I.D. 6
a/f [mm] 14
Dolžina [mm] 46.9
Delovni tlak 0 to 35 bar, maximum static working pressure (non-pulsating)
Ohišje Nickel-plated brass
Tesnilo NBR
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 100
Min. sobna temperatura [°C] -20
Max. sobna temperatura [°C] 100
Pretok 560 l/min (air)
Vzmet Stainless steel
Telo ventila Nickel-plated brass
Rokav Nickel-plated brass
Pritrdilni obroč Stainless steel
Merjenje pretoka at 6 bar and Δp = 0.5 bar
Zaporni zatič Stainless steel
