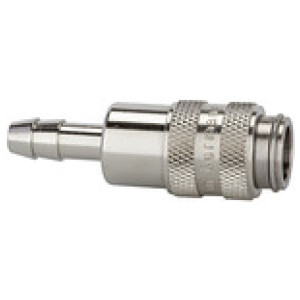

Hitre spojke I.D. 5,ponikljana medenina, cev I.D. 5 slika
Hitre spojke I.D. 5,ponikljana medenina, cev I.D. 5 slika

* slike so simbolične

Hitre spojke I.D. 5,ponikljana medenina, cev I.D. 5

SKU: 107165RIE
EAN: 4047322285308

Quick-connect coupling I.D. 5, nickel-plated brass, Sleeve I.D. 5, Operating pressure 0-35 bar, Med./ambient temp. -20°C to 100°C

"

One-hand quick disconnect couplings, one side sealing, compact with a large bore and only a small pressure drop.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

Areas of application: Pneumatic system, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology.

"
Čas dobave 3 - 5 dni
9,72 €
Primerjaj z ostalimi
Šifra Povezava Dolžina [mm] Zaloga Cena Nakup Natisni
107167RIE I.D. 8 46.0
Čas dobave 3 - 5 dni
9,72 € Natisni
107165RIE I.D. 5 46.0
Čas dobave 3 - 5 dni
9,72 € Natisni
107164RIE I.D. 4 47.0
Čas dobave 3 - 5 dni
9,72 € Natisni
107168RIE I.D. 9 46.0
Čas dobave 3 - 5 dni
9,72 € Natisni
107166RIE I.D. 6 46.0
Čas dobave 3 - 5 dni
9,72 € Natisni

Opis

Quick-connect coupling I.D. 5, nickel-plated brass, Sleeve I.D. 5, Operating pressure 0-35 bar, Med./ambient temp. -20°C to 100°C

"

One-hand quick disconnect couplings, one side sealing, compact with a large bore and only a small pressure drop.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

Areas of application: Pneumatic system, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology.

"

Tehnični podatki in specifikacije

DN 5
Povezava I.D. 5
Dolžina [mm] 46.0
Delovni tlak 0 to 35 bar, maximum static working pressure (non-pulsating)
Ohišje Nickel-plated brass
Tesnilo NBR
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 100
Min. sobna temperatura [°C] -20
Max. sobna temperatura [°C] 100
Pretok 560 l/min (air)
Krogla Stainless steel
Vzmet Stainless steel
Telo ventila Nickel-plated brass
Rokav Nickel-plated brass
Pritrdilni obroč Stainless steel
Merjenje pretoka at 6 bar and Δp = 0.5 bar
