* slike so simbolične

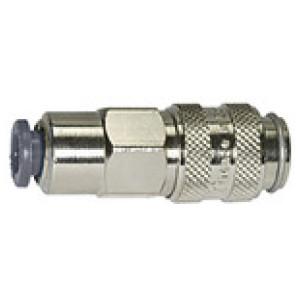

Hitre spojke I.D. 5,ponikljana medenina, push-in 8 mm
SKU: 107176RIE
EAN: 4047322207553
Quick-connect coupling I.D. 5, nickel-plated brass, push-in connection 8 mm, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C
"One-hand quick disconnect couplings, one side sealing, compact with a large bore and only a small pressure drop.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
Areas of application: Pneumatic system, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology.
"Šifra | Povezava | a/f [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|
107176RIE | 8 mm | 17 | 46.5 | Čas dobave: Predvidoma 3 - 5 dni | 19,14 € | | |
107175RIE | 6 mm | 14 | 43.5 | Čas dobave: Predvidoma 3 - 5 dni | 19,14 € | |
Opis
Quick-connect coupling I.D. 5, nickel-plated brass, push-in connection 8 mm, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C
"One-hand quick disconnect couplings, one side sealing, compact with a large bore and only a small pressure drop.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
Areas of application: Pneumatic system, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology.
"Tehnični podatki in specifikacije
DN | 5 |
Povezava | 8 mm |
a/f [mm] | 17 |
Dolžina [mm] | 46.5 |
Delovni tlak | 0 to 35 bar, maximum static working pressure (non-pulsating) |
Ohišje | Nickel-plated brass |
Tesnilo | NBR |
Min. temperatura medija [°C] | -20 |
Max. temperatura medija [°C] | 100 |
Min. sobna temperatura [°C] | -20 |
Max. sobna temperatura [°C] | 100 |
Pretok | 560 l/min (air) |
Krogla | Stainless steel |
Vzmet | Stainless steel |
Telo ventila | Nickel-plated brass |
Rokav | Nickel-plated brass |
Pritrdilni obroč | Stainless steel |
Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
