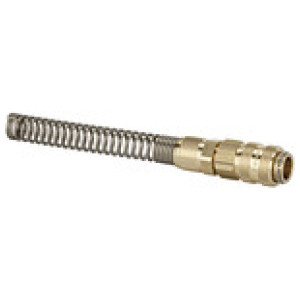

Hitre spojke I.D. 5,  zunanji navoj medenina,vrteče, cev 6x4 slika
Hitre spojke I.D. 5,  zunanji navoj medenina,vrteče, cev 6x4 slika

* slike so simbolične

Hitre spojke I.D. 5, zunanji navoj medenina,vrteče, cev 6x4

SKU: 107143RIE
EAN: 4047322285476

Quick-connect coupling I.D. 5, bright brass, rotating, Hose connection 6x4, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C

"

One-hand quick disconnect couplings, one side sealing, compact with a large bore and only a small pressure drop.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

Areas of application: Pneumatic system, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology.

"
Čas dobave: Predvidoma 3 - 5 dni
15,62 €
Primerjaj z ostalimi
Šifra Povezava Različica Dolžina [mm] Zaloga Cena Nakup Natisni
107141RIE Hose connection 6x4 Rigid 120.0
Čas dobave: Predvidoma 3 - 5 dni
9,48 € Natisni
107144RIE Hose connection 8x6 Swivelling 360° 145.0
Čas dobave: Predvidoma 3 - 5 dni
15,62 € Natisni
107142RIE Hose connection 8x6 Rigid 132.0
Čas dobave: Predvidoma 3 - 5 dni
9,48 € Natisni
107143RIE Hose connection 6x4 Swivelling 360° 134.0
Čas dobave: Predvidoma 3 - 5 dni
15,62 € Natisni

Opis

Quick-connect coupling I.D. 5, bright brass, rotating, Hose connection 6x4, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C

"

One-hand quick disconnect couplings, one side sealing, compact with a large bore and only a small pressure drop.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

Areas of application: Pneumatic system, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology.

"

Tehnični podatki in specifikacije

DN 5
Povezava Hose connection 6x4
a/f [mm] 14
Dolžina [mm] 134.0
Delovni tlak 0 to 35 bar, maximum static working pressure (non-pulsating)
Ohišje Brass with a bare metal surface
Tesnilo NBR
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 100
Min. sobna temperatura [°C] -20
Max. sobna temperatura [°C] 100
Pretok 560 l/min (air)
Krogla Stainless steel
Vzmet Stainless steel
Telo ventila Brass with a bare metal surface
Rokav Brass with a bare metal surface
Pritrdilni obroč Stainless steel
Merjenje pretoka at 6 bar and Δp = 0.5 bar
Različica Swivelling 360°
