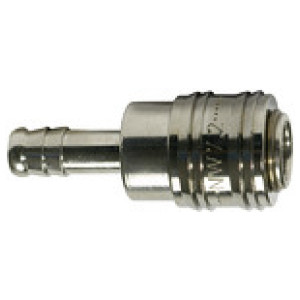

Hitre spojke I.D. 7.2 »connect line« cev I.D. 6 slika
Hitre spojke I.D. 7.2 »connect line« cev I.D. 6 slika

* slike so simbolične

Hitre spojke I.D. 7.2 »connect line« cev I.D. 6

SKU: 115647RIE
EAN: 4047322059732

Quick-connect coupling I.D. 7.2 »connect line« nickel-plated brass, Sleeve I.D. 6, Operating pre. 0 - 35 bar, Temp. -20°C to 100°C

"

Universal, one-hand quick disconnect couplings, one side sealing, at an unbeatably low price.

The closed sleeve protects the coupling from dirt.

In combination with steel plugs, this coupling can also be used for pneumatic tools thanks to its hardened locking pins.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

These quick disconnect couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive.

"
Čas dobave: Predvidoma 3 - 5 dni
7,64 €
Primerjaj z ostalimi
Šifra Povezava Dolžina [mm] Zaloga Cena Nakup Natisni
115649RIE I.D. 9 54.0
Čas dobave: Predvidoma 3 - 5 dni
7,64 € Natisni
115651RIE I.D. 13 53.5
Čas dobave: Predvidoma 3 - 5 dni
7,64 € Natisni
115647RIE I.D. 6 54.0
Čas dobave: Predvidoma 3 - 5 dni
7,64 € Natisni

Opis

Quick-connect coupling I.D. 7.2 »connect line« nickel-plated brass, Sleeve I.D. 6, Operating pre. 0 - 35 bar, Temp. -20°C to 100°C

"

Universal, one-hand quick disconnect couplings, one side sealing, at an unbeatably low price.

The closed sleeve protects the coupling from dirt.

In combination with steel plugs, this coupling can also be used for pneumatic tools thanks to its hardened locking pins.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

These quick disconnect couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive.

"

Tehnični podatki in specifikacije

DN 7.2
Povezava I.D. 6
Ohišje Nickel-plated brass
Tesnilo NBR
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 100
Min. sobna temperatura [°C] -20
Max. sobna temperatura [°C] 100
Pretok 1000 l/min (air)
Vzmet Stainless steel
Telo ventila Nickel-plated brass
Rokav Nickel-plated brass
Pritrdilni obroč Stainless steel
Zaporni zatič Stainless steel
Merjenje pretoka at 6 bar and Δp = 0.5 bar
Delovni tlak 0 to 35 bar, maximum static working pressure (non-pulsating)
Dolžina [mm] 54.0
