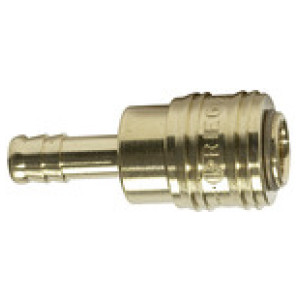

Hitre spojke I.D. 7.2 »connect line«,Fi cevi I.D. 9 slika
Hitre spojke I.D. 7.2 »connect line«,Fi cevi I.D. 9 slika

* slike so simbolične

Hitre spojke I.D. 7.2 »connect line«,Fi cevi I.D. 9

SKU: 115648RIE
EAN: 4047322059787

Quick-connect coupling I.D. 7.2 »connect line«, bright brass, Sleeve I.D. 9, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C

"

Universal, one-hand quick disconnect couplings, one side sealing, at an unbeatably low price.

The closed sleeve protects the coupling from dirt.

In combination with steel plugs, this coupling can also be used for pneumatic tools thanks to its hardened locking pins.

Couplings and plugs with thread sealing coating:

Ready-to assemble polyacrylate thread coating provides an instant, tight seal without curing. The permanently elastic sealant can be adjusted up to 45° without influencing the seal. Safe to use. Easy to assemble and disassemble.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

These quick disconnect couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive.

"
Čas dobave: Predvidoma 3 - 5 dni
6,31 €
Primerjaj z ostalimi
Šifra Povezava Dolžina [mm] Zaloga Cena Nakup Natisni
115650RIE I.D. 13 53.5
Čas dobave: Predvidoma 3 - 5 dni
6,31 € Natisni
115652RIE I.D. 8 54.0
Čas dobave: Predvidoma 3 - 5 dni
6,31 € Natisni
115646RIE I.D. 6 54.0
Čas dobave: Predvidoma 3 - 5 dni
6,31 € Natisni
115653RIE I.D. 10 54.0
Čas dobave: Predvidoma 3 - 5 dni
6,31 € Natisni
115648RIE I.D. 9 54.0
Čas dobave: Predvidoma 3 - 5 dni
6,31 € Natisni

Opis

Quick-connect coupling I.D. 7.2 »connect line«, bright brass, Sleeve I.D. 9, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C

"

Universal, one-hand quick disconnect couplings, one side sealing, at an unbeatably low price.

The closed sleeve protects the coupling from dirt.

In combination with steel plugs, this coupling can also be used for pneumatic tools thanks to its hardened locking pins.

Couplings and plugs with thread sealing coating:

Ready-to assemble polyacrylate thread coating provides an instant, tight seal without curing. The permanently elastic sealant can be adjusted up to 45° without influencing the seal. Safe to use. Easy to assemble and disassemble.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

These quick disconnect couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive.

"

Tehnični podatki in specifikacije

DN 7.2
Povezava I.D. 9
Ohišje Brass with a bare metal surface
Tesnilo NBR
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 100
Min. sobna temperatura [°C] -20
Max. sobna temperatura [°C] 100
Pretok 1000 l/min (air)
Vzmet Stainless steel
Telo ventila Brass with a bare metal surface
Rokav Brass with a bare metal surface
Pritrdilni obroč Stainless steel
Zaporni zatič Stainless steel
Merjenje pretoka at 6 bar and Δp = 0.5 bar
Delovni tlak 0 to 35 bar, maximum static working pressure (non-pulsating)
Dolžina [mm] 54.0
