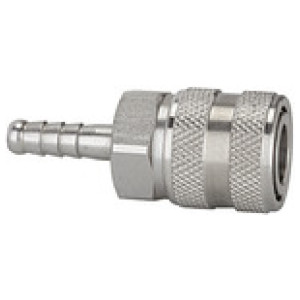

Hitre spojke I.D. 7.2,Nerjavno jeklo 1.4301,Fi cevi I.D. 6
SKU: 107340RIE
EAN: 4047322058520
Quick-connect coupling I.D. 7.2, Stainless steel 1.4305, Sleeve I.D. 6, Operating pressure max. 35 bar, Temp. -25 °C to 200 °C
Classic standard coupling type, one side sealing, made of stainless steel.
The closed sleeve protects the coupling from dirt.
We recommend the use of stainless steel plugs and stems!
To prevent injuries or a "whiplash" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
These quick disconnect couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, chemical / pharmaceutical industry, workshops, automotive, offshore.
Obrestno financiranje
- 10,39 € x 12 mesecev
- 20,32 € x 6 mesecev
- 40,19 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Povezava | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 107343RIE | I.D. 10 | Čas dobave 3 - 5 dni | 111,17 € |  | |
| 107340RIE | I.D. 6 | Čas dobave 3 - 5 dni | 111,17 € | | |
| 107344RIE | I.D. 13 | Čas dobave 3 - 5 dni | 111,17 € | | |
| 107341RIE | I.D. 8 | Čas dobave 3 - 5 dni | 111,17 € | | |
| 107342RIE | I.D. 9 | Čas dobave 3 - 5 dni | 111,17 € | |
Opis
Quick-connect coupling I.D. 7.2, Stainless steel 1.4305, Sleeve I.D. 6, Operating pressure max. 35 bar, Temp. -25 °C to 200 °C
Classic standard coupling type, one side sealing, made of stainless steel.
The closed sleeve protects the coupling from dirt.
We recommend the use of stainless steel plugs and stems!
To prevent injuries or a "whiplash" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
These quick disconnect couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, chemical / pharmaceutical industry, workshops, automotive, offshore.
Tehnični podatki in specifikacije
| DN | 7.2 |
| Max. obratovalni tlak [bar] | 35 |
| Povezava | I.D. 6 |
| a/f [mm] | 22 |
| Ohišje | Stainless steel 1.4305 |
| Tesnilo | FKM |
| Min. temperatura medija [°C] | -25 |
| Max. temperatura medija [°C] | 200 |
| Min. sobna temperatura [°C] | -25 |
| Max. sobna temperatura [°C] | 200 |
| Pretok | 1000 l/min (air) |
| Vzmet | Stainless steel 1.4310 |
| Telo ventila | Stainless steel 1.4305 |
| Rokav | Stainless steel 1.4305 |
| Pritrdilni obroč | Stainless steel 1.4310 |
| Zaporni zatič | Stainless steel 1.4401 |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
| Dolžina [mm] | 59.0 |
