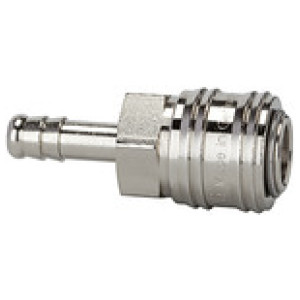

Hitre spojke I.D. 7.2,ponikljana medenina,Fi cevi I.D. 8 slika
Hitre spojke I.D. 7.2,ponikljana medenina,Fi cevi I.D. 8 slika

* slike so simbolične

Hitre spojke I.D. 7.2,ponikljana medenina,Fi cevi I.D. 8

SKU: 107287RIE
EAN: 4047322286398

Quick-connect coupling I.D. 7.2, nickel-plated brass, Sleeve I.D. 8, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C

"

Universal, one-hand quick disconnect couplings, one side sealing, suitable for a wide range of tasks and applications!

The closed sleeve protects the coupling from dirt.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

These quick disconnect couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive.

"
Čas dobave 3 - 5 dni
11,35 €
Primerjaj z ostalimi
Šifra Povezava Dolžina [mm] Zaloga Cena Nakup Natisni
107289 I.D. 10 63.0
Čas dobave 3 - 5 dni
11,92 € Natisni
107290 I.D. 13 58.0
Čas dobave 3 - 5 dni
11,35 € Natisni
107286 I.D. 6 58.0
Čas dobave 3 - 5 dni
11,35 € Natisni
107288 I.D. 9 58.0
Čas dobave 3 - 5 dni
11,35 € Natisni
107287 I.D. 8 63.0
Čas dobave 3 - 5 dni
11,35 € Natisni

Opis

Quick-connect coupling I.D. 7.2, nickel-plated brass, Sleeve I.D. 8, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C

"

Universal, one-hand quick disconnect couplings, one side sealing, suitable for a wide range of tasks and applications!

The closed sleeve protects the coupling from dirt.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

These quick disconnect couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive.

"

Tehnični podatki in specifikacije

DN 7.2
Povezava I.D. 8
a/f [mm] 21
Ohišje Nickel-plated brass
Tesnilo NBR
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 100
Min. sobna temperatura [°C] -20
Max. sobna temperatura [°C] 100
Pretok 1000 l/min (air)
Vzmet Stainless steel 1.4310
Telo ventila Brass with a bare metal surface
Rokav Nickel-plated brass
Pritrdilni obroč Stainless steel 1.4310
Zaporni zatič Stainless steel 1.4034
Merjenje pretoka at 6 bar and Δp = 0.5 bar
Delovni tlak 0 to 35 bar, maximum static working pressure (non-pulsating)
Dolžina [mm] 63.0
