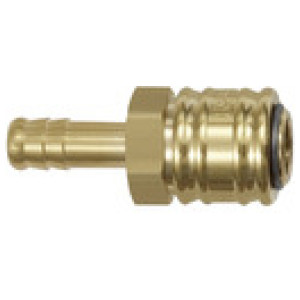

Hitre spojke I.D. 7.2,  zunanji navoj medenina, cev I.D. 10 slika
Hitre spojke I.D. 7.2,  zunanji navoj medenina, cev I.D. 10 slika

* slike so simbolične

Hitre spojke I.D. 7.2, zunanji navoj medenina, cev I.D. 10

SKU: 107217RIE
EAN: 4047322285179

Quick-connect coupling I.D. 7.2, bright brass, Sleeve I.D. 10, Operating pressure 0 - 35 bar, Med./ambient temp. -20 °C to 100 °C

"

Universal, one-hand quick disconnect couplings, one side sealing, suitable for a wide range of tasks and applications!

The closed sleeve protects the coupling from dirt.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

These quick disconnect couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive.

"
Čas dobave 3 - 5 dni
11,90 €
Primerjaj z ostalimi
Šifra Povezava Dolžina [mm] Zaloga Cena Nakup Natisni
107214RIE I.D. 6 58.0
Čas dobave 3 - 5 dni
8,84 € Natisni
107215RIE I.D. 8 58.0
Čas dobave 3 - 5 dni
8,76 € Natisni
107218RIE I.D. 13 63.0
Čas dobave 3 - 5 dni
8,84 € Natisni
107217RIE I.D. 10 63.0
Čas dobave 3 - 5 dni
11,90 € Natisni
107216RIE I.D. 9 63.0
Čas dobave 3 - 5 dni
8,84 € Natisni

Opis

Quick-connect coupling I.D. 7.2, bright brass, Sleeve I.D. 10, Operating pressure 0 - 35 bar, Med./ambient temp. -20 °C to 100 °C

"

Universal, one-hand quick disconnect couplings, one side sealing, suitable for a wide range of tasks and applications!

The closed sleeve protects the coupling from dirt.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

These quick disconnect couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive.

"

Tehnični podatki in specifikacije

DN 7.2
Povezava I.D. 10
a/f [mm] 21
Ohišje Brass with a bare metal surface
Tesnilo NBR
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 100
Min. sobna temperatura [°C] -20
Max. sobna temperatura [°C] 100
Pretok 1000 l/min (air)
Vzmet Stainless steel
Telo ventila Brass with a bare metal surface
Rokav Brass with a bare metal surface
Pritrdilni obroč Stainless steel
Zaporni zatič Stainless steel
Merjenje pretoka at 6 bar and Δp = 0.5 bar
Delovni tlak 0 to 35 bar, maximum static working pressure (non-pulsating)
Dolžina [mm] 63.0
