* slike so simbolične

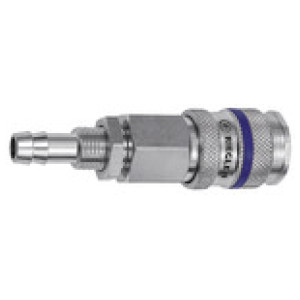

Hitre spojke I.D. 7.8, ,Fi cevi I.D. 8, M12x1
SKU: 141530RIE
EAN: 4047322568197
Quick-connect coupling I.D. 7.8, Steel, Sleeve I.D. 8, Bulkhead thread M12x1, Operating pressure 0-35 bar, Temp. -20 °C to 100 °C
"Single-sided blocking, high quality and robust quick connect coupling for high flow values.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
These quick disconnect couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive, mining.
"Šifra | Povezava | Pribor za pregrade | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|
141529RIE | I.D. 6 | M12x1 | Čas dobave: Predvidoma 3 - 5 dni | 24,91 € | ||
141531RIE | I.D. 10 | G 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 24,91 € | ||
141530RIE | I.D. 8 | M12x1 | Čas dobave: Predvidoma 3 - 5 dni | 24,91 € |
Opis
Quick-connect coupling I.D. 7.8, Steel, Sleeve I.D. 8, Bulkhead thread M12x1, Operating pressure 0-35 bar, Temp. -20 °C to 100 °C
"Single-sided blocking, high quality and robust quick connect coupling for high flow values.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
These quick disconnect couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive, mining.
"Tehnični podatki in specifikacije
DN | 7.8 |
Povezava | I.D. 8 |
Delovni tlak | 0 - 35 bar |
Ohišje | Galvanised steel |
Tesnilo | NBR |
Min. temperatura medija [°C] | -20 |
Max. temperatura medija [°C] | 100 |
Min. sobna temperatura [°C] | -20 |
Max. sobna temperatura [°C] | 100 |
Pretok | 2000 l/min (air) |
Krogla | Stainless steel |
Vzmet | Stainless steel |
Rokav | Galvanised steel |
Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
Navojni kos | Galvanised steel |
Ventil | Die-cast zinc (zamac) |
a/f [mm] | 19 |
Dolžina [mm] | 79.0 |
Pribor za pregrade | M12x1 |
