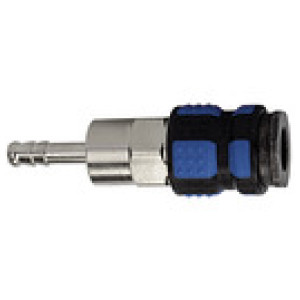

Hitre spojke I.D. 7.8visok pretok,Fi 13 slika
Hitre spojke I.D. 7.8visok pretok,Fi 13 slika

* slike so simbolične

Hitre spojke I.D. 7.8visok pretok,Fi 13

SKU: 107416RIE
EAN: 4047322207362

Quick-connect coupling I.D. 7.8, High flow rate, Sleeve I.D. 13, Operating pressure 0 - 35 bar, Medium/ambient temp. -20°C to 40°C

"

One-hand quick disconnect couplings, one side sealing, that combine high flow rates (approx. twice as high as the popular DN 7.2 standard coupling) with minimal coupling forces.

Suitable for all applications with an above-average air requirement!

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

These quick disconnect couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive, food technology, aerospace.

"
Čas dobave 3 - 5 dni
27,14 €
21,71 €
Primerjaj z ostalimi
Šifra Povezava Zaloga Cena Nakup Natisni
107412RIE I.D. 6
Čas dobave 3 - 5 dni
21,25 € Natisni
107415RIE I.D. 10
Čas dobave 3 - 5 dni
26,06 € Natisni
107413RIE I.D. 8
Čas dobave 3 - 5 dni
26,06 € Natisni
107414RIE I.D. 9
Čas dobave 3 - 5 dni
21,25 € Natisni
107416RIE I.D. 13
Čas dobave 3 - 5 dni
21,71 € Natisni

Opis

Quick-connect coupling I.D. 7.8, High flow rate, Sleeve I.D. 13, Operating pressure 0 - 35 bar, Medium/ambient temp. -20°C to 40°C

"

One-hand quick disconnect couplings, one side sealing, that combine high flow rates (approx. twice as high as the popular DN 7.2 standard coupling) with minimal coupling forces.

Suitable for all applications with an above-average air requirement!

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

These quick disconnect couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive, food technology, aerospace.

"

Tehnični podatki in specifikacije

DN 7.8
Max. obratovalni tlak [bar] 35
Povezava I.D. 13
Tesnilo NBR
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 40
Min. sobna temperatura [°C] -20
Max. sobna temperatura [°C] 40
Pretok 2100 l/min (air)
Krogla Stainless steel
Vzmet Stainless steel
Telo ventila Steel, QPQ treated
Pritrdilni obroč Stainless steel
Merjenje pretoka at 6 bar and Δp = 0.5 bar
Sedež ventila Brass
Navojni kos Nickel-plated brass
Sprostitveni rokav Extremely robust, ergonomic plastic
Ventil Brass
a/f [mm] 19
Dolžina [mm] 80.0
