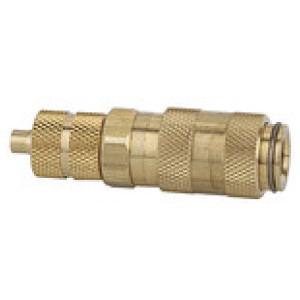

Hitre spojke s prekrN.N.o matico I.D. 2.7iz med. cev 5x3
SKU: 107076RIE
EAN: 4047322058056
Quick-connect coupling I.D. 2.7, bright brass, Hose connection 5x3, Operating pressure 0-35 bar, Med./ambient temp. -20°C to 100°C
"One-hand quick disconnect couplings, one side sealing, extremely compact with a large bore and only a small pressure drop.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive.
"| Šifra | Povezava | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 107075RIE | Hose connection 4x3 | Čas dobave: Predvidoma 3 - 5 dni | 10,35 € |  | |
| 107077RIE | Hose connection 6x4 | Čas dobave: Predvidoma 3 - 5 dni | 10,35 € | | |
| 107076RIE | Hose connection 5x3 | Čas dobave: Predvidoma 3 - 5 dni | 10,35 € | |
Opis
Quick-connect coupling I.D. 2.7, bright brass, Hose connection 5x3, Operating pressure 0-35 bar, Med./ambient temp. -20°C to 100°C
"One-hand quick disconnect couplings, one side sealing, extremely compact with a large bore and only a small pressure drop.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive.
"Tehnični podatki in specifikacije
| DN | 2.7 |
| Povezava | Hose connection 5x3 |
| Dolžina [mm] | 34.0 |
| Delovni tlak | 0 to 35 bar, maximum static working pressure (non-pulsating) |
| Ohišje | Brass with a bare metal surface |
| Tesnilo | NBR |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 100 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 100 |
| Pretok | 165 l/min (air) |
| Krogla | Stainless steel |
| Vzmet | Stainless steel |
| Telo ventila | Brass with a bare metal surface |
| Rokav | Brass with a bare metal surface |
| Pritrdilni obroč | Stainless steel |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
