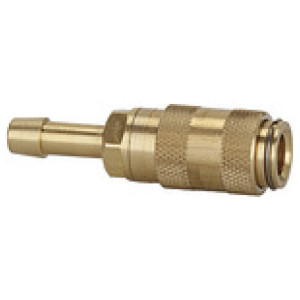

Hitre spojke z cevnim navojnim priklj. I.D. 2.7iz med. I.D. 4 slika
Hitre spojke z cevnim navojnim priklj. I.D. 2.7iz med. I.D. 4 slika

* slike so simbolične

Hitre spojke z cevnim navojnim priklj. I.D. 2.7iz med. I.D. 4

SKU: 107074RIE
EAN: 4047322058001

Quick-connect coupling I.D. 2.7, bright brass, Sleeve I.D. 4, Operating pressure 0 - 35 bar, Medium / ambient temp. -20°C to 100°C

"

One-hand quick disconnect couplings, one side sealing, extremely compact with a large bore and only a small pressure drop.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive.

"
Čas dobave 3 - 5 dni
9,74 €
Primerjaj z ostalimi
Šifra Povezava Zaloga Cena Nakup Natisni
107074RIE I.D. 4
Čas dobave 3 - 5 dni
9,74 € Natisni
107073RIE I.D. 3
Čas dobave 3 - 5 dni
9,74 € Natisni

Opis

Quick-connect coupling I.D. 2.7, bright brass, Sleeve I.D. 4, Operating pressure 0 - 35 bar, Medium / ambient temp. -20°C to 100°C

"

One-hand quick disconnect couplings, one side sealing, extremely compact with a large bore and only a small pressure drop.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive.

"

Tehnični podatki in specifikacije

DN 2.7
Povezava I.D. 4
Dolžina [mm] 35.0
Delovni tlak 0 to 35 bar, maximum static working pressure (non-pulsating)
Ohišje Brass with a bare metal surface
Tesnilo NBR
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 100
Min. sobna temperatura [°C] -20
Max. sobna temperatura [°C] 100
Pretok 165 l/min (air)
Krogla Stainless steel
Vzmet Stainless steel
Telo ventila Brass with a bare metal surface
Rokav Brass with a bare metal surface
Pritrdilni obroč Stainless steel
Merjenje pretoka at 6 bar and Δp = 0.5 bar
