Hitro oddušni ventil lineonline, Controlled venting, za Ø 6
SKU: 106764RIE
EAN: 9063016

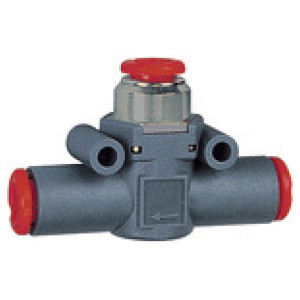

Quick relief valve »lineonline«, Controlled venting, Hose - hose, for hose Ø 6 mm, Operating pressure 1 - 10 bar
Exhaust can be silenced by a stainless steel silencer or conveyed using a push-in fitting with an air exhaust device.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Hitro oddušni ventil lineonline, Controlled venting, za Ø 6
Notranji deli: Nickel-plated brass, brass, technopolymer, stainless steel

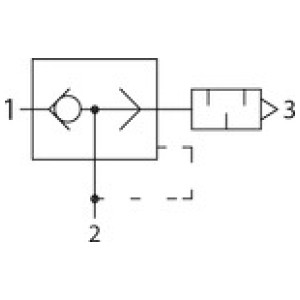

Pnevmatski simboli: On housing
Telo: Technopolymer
Pnevmatski simboli: On housing
Telo: Technopolymer

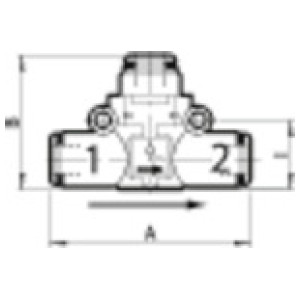

| Šifra | Za cevi Ø [mm] | I [mm] | B [mm] | A [mm] | Pretok pri 6,3 bara [Nl/min] | Izhodni pretok pri 6,3 bar [Nl/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 106765RIE | 8 | 18.7 | 35.9 | 57.2 | 400 | 1000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 106763RIE | 4 | 12.8 | 25.8 | 41.8 | 50 | 100 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 106764RIE | 6 | 14.6 | 30.2 | 49.0 | 270 | 700 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Quick relief valve »lineonline«, Controlled venting, Hose - hose, for hose Ø 6 mm, Operating pressure 1 - 10 bar
Exhaust can be silenced by a stainless steel silencer or conveyed using a push-in fitting with an air exhaust device.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Min. obratovalni tlak [bar] | 1 |
| Max. obratovalni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 60 |
| Tesnilo | NBR |
| Telo | Technopolymer |
| Notranji deli | Nickel-plated brass, brass, technopolymer, stainless steel |
| Pnevmatski simboli | On housing |
| Za cevi Ø [mm] | 6 |
| A [mm] | 49.0 |
| B [mm] | 30.2 |
| I [mm] | 14.6 |
| Pretok pri 6,3 bara [Nl/min] | 270 |
| Izhodni pretok pri 6,3 bar [Nl/min] | 700 |
