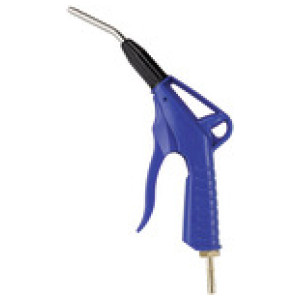

Izpih. pišt. z nadzorom tlaka, POM, ter regul. tlaka,Fi13
SKU: 114411RIE
EAN: 4047322245708
Air gun with pressure control, POM, with pressure regulator, 90 mm pipe, Temp. range -20°C to 60°C, PN max. 8 bar, Sleeve I.D. 13
Pressure regulating safety version.
Ergonomic grip with a very high blowing force. Several possible hanging points thanks to the modified handle. Robust yet lightweight for a long service life. With its ergonomic design, the gun can be used by both left and right-handed users! The integrated tube regulator reduces the output pressure to a safe value in the event of blockage inside the tube or in case of back pressure (e.g. if the gun is placed on a surface or on the operator's skin).
Povpraševanje
Priključni navoj: Rc 1/4
Vrsta povezave: Stem, I.D. 13
| Šifra | Vrsta povezave | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 114410RIE | Stem, I.D. 9 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 114412RIE | Push-in plug for DN 7.2 - 7.8 couplings | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 114409RIE | Stem, I.D. 6 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 118582RIE | Rc 1/4 IT | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 114411RIE | Stem, I.D. 13 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Air gun with pressure control, POM, with pressure regulator, 90 mm pipe, Temp. range -20°C to 60°C, PN max. 8 bar, Sleeve I.D. 13
Pressure regulating safety version.
Ergonomic grip with a very high blowing force. Several possible hanging points thanks to the modified handle. Robust yet lightweight for a long service life. With its ergonomic design, the gun can be used by both left and right-handed users! The integrated tube regulator reduces the output pressure to a safe value in the event of blockage inside the tube or in case of back pressure (e.g. if the gun is placed on a surface or on the operator's skin).
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. obratovalni tlak [bar] | 8 |
| Max. temperaturno območje [°C] | 60 |
| Cev | Nickel-plated brass |
| Material | POM |
| Priključni navoj | Rc 1/4 |
| Vrsta povezave | Stem, I.D. 13 |
