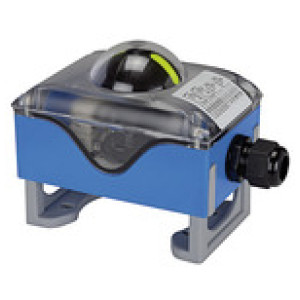

Javl. Kon. položaja tip M2 with mikro stikalo,4 V DC-250 V AC
SKU: 103688RIE
EAN: 4047322077828
End position feedback type M 2 with micro-switch, 4 V DC - 250 V AC, Changeover contact, 1 mA - 5 mA, IP 67, Temp. -20°C to 70°C
Robust type in a plastic housing
- Universal indicator for NAMUR sizes 80 x 30 and 130 x 30
- Height-adjustable feet that adapt to different pinion projections
- ON / OFF position indicator also visible from a distance
- Easy-to-adjust, self-locking trip cam
Povpraševanje
Gred: Polyamide PA6, black
IP zaščita: IP 67, acc. to DIN EN 60529
Kabelska uvodnica: M20x1.5
Montažni most: PA6 with 30 % glass fibre
Ohišje: Polyamide blue or black
Opis: End position feedback, M 2 type with microswitch
Preklopna funkcija: Changeover, silver-plated contacts
Različica: with microswitch
Tesnilo: EPDM and NBR
Vijaki: Stainless steel 1.4301
Minimalna preklopna zmogljivost: 1 mA at 4 V DC
Nominalna preklopna zmogljivost: 1 mA to 5 A at 250 V AC
| Šifra | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|
| 103688RIE | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
Opis
End position feedback type M 2 with micro-switch, 4 V DC - 250 V AC, Changeover contact, 1 mA - 5 mA, IP 67, Temp. -20°C to 70°C
Robust type in a plastic housing
- Universal indicator for NAMUR sizes 80 x 30 and 130 x 30
- Height-adjustable feet that adapt to different pinion projections
- ON / OFF position indicator also visible from a distance
- Easy-to-adjust, self-locking trip cam
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 70 |
| Gred | Polyamide PA6, black |
| Ohišje | Polyamide blue or black |
| Preklopna funkcija | Changeover, silver-plated contacts |
| Vijaki | Stainless steel 1.4301 |
| IP zaščita | IP 67, acc. to DIN EN 60529 |
| Kabelska uvodnica | M20x1.5 |
| Minimalna preklopna zmogljivost | 1 mA at 4 V DC |
| Nominalna preklopna zmogljivost | 1 mA to 5 A at 250 V AC |
| Montažni most | PA6 with 30 % glass fibre |
| Tesnilo | EPDM and NBR |
| Glava | Polycarbonate, transparent |
| Opis | End position feedback, M 2 type with microswitch |
| Različica | with microswitch |
