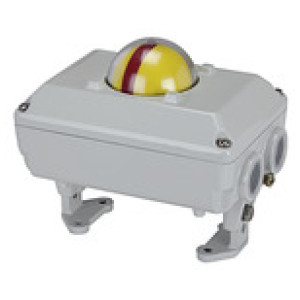

Javljal. kon. položaja tip SC-D 2, induktiven senzor, 3-wire, PNP slika

* slike so simbolične

Javljal. kon. položaja tip SC-D 2, induktiven senzor, 3-wire, PNP

SKU: 103692RIE
EAN: 4047322078221

End position feedback type SC-D 2, inductive sensors, 3-wire, PNP NO contact, 10 V-30 V DC, 100 mA, IP 66, Temp. -20 °C to 70 °C

Robust type in an aluminium housing

- Universal indicator for NAMUR sizes 80 x 30 and 130 x 30

- Height-adjustable feet that adapt to different pinion projections

- ON / OFF position indicator also visible from a distance

- Easy-to-adjust, self-locking trip cam

Čas dobave: Predvidoma 3 - 5 dni
288,76 €
ali od 14,13 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 14,13 € x 24 mesecev
  • 27,04 € x 12 mesecev
  • 52,90 € x 6 mesecev
  • 104,63 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Zaloga Cena Nakup Natisni
103692RIE
Čas dobave: Predvidoma 3 - 5 dni
288,76 € Natisni

Opis

End position feedback type SC-D 2, inductive sensors, 3-wire, PNP NO contact, 10 V-30 V DC, 100 mA, IP 66, Temp. -20 °C to 70 °C

Robust type in an aluminium housing

- Universal indicator for NAMUR sizes 80 x 30 and 130 x 30

- Height-adjustable feet that adapt to different pinion projections

- ON / OFF position indicator also visible from a distance

- Easy-to-adjust, self-locking trip cam

Tehnični podatki in specifikacije

Min. temperaturno območje [°C] -20
Max. temperaturno območje [°C] 70
Območje napetosti 10 V - 30 V DC
Gred Nickel-plated steel
Ohišje Die-cast aluminium EN AB 46100, epoxy powder-coated
Preklopna funkcija PNP NO contact
Vijaki Stainless steel
IP zaščita EX TDA21 IP66/67 T 85 °C
Kabelska uvodnica M20x1.5, up to four cable glands possible
Obratovalni tok Max. 100 mA
Opis End position feedback, SC-D 2 type with inductive 3-wire sensors
Različica with inductive sensors, 3-wire
