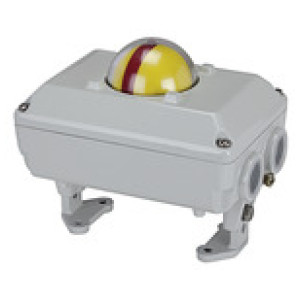

Javljal.kon.položaja ATEX tip SC-NS 2, induktiven NAMUR senzor
SKU: 103693RIE
EAN: 4047322078238
End position feedback ATEX type SC-NS 2, inductive NAMUR sensors, 2-fold, Voltage range 8 V, Temp. -20 °C to 70 °C
Robust type in an aluminium housing
- Universal indicator for NAMUR sizes 80 x 30 and 130 x 30
- Height-adjustable feet that adapt to different pinion projections
- ON / OFF position indicator also visible from a distance
- Easy-to-adjust, self-locking trip cam
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Javljal.kon.položaja ATEX tip SC-NS 2, induktiven NAMUR senzor
Gred: Nickel-plated steel
IP zaščita: EX TDA21 IP66/67 T 85 °C
Izhodni tok: Damped <1 mA / undamped >3 mA
Kabelska uvodnica: M20x1.5, up to four cable glands possible
Ohišje: Die-cast aluminium EN AB 46100, epoxy powder-coated
Opis: End position feedback, with inductive NAMUR sensors, ATEX
Preklopna funkcija: Damped or undamped in the end position
Različica: with inductive NAMUR sensors, ATEX
Vijaki: Stainless steel
IP zaščita: EX TDA21 IP66/67 T 85 °C
Izhodni tok: Damped <1 mA / undamped >3 mA
Kabelska uvodnica: M20x1.5, up to four cable glands possible
Ohišje: Die-cast aluminium EN AB 46100, epoxy powder-coated
Opis: End position feedback, with inductive NAMUR sensors, ATEX
Preklopna funkcija: Damped or undamped in the end position
Različica: with inductive NAMUR sensors, ATEX
Vijaki: Stainless steel
| Šifra | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|
| 103693RIE | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
Opis
End position feedback ATEX type SC-NS 2, inductive NAMUR sensors, 2-fold, Voltage range 8 V, Temp. -20 °C to 70 °C
Robust type in an aluminium housing
- Universal indicator for NAMUR sizes 80 x 30 and 130 x 30
- Height-adjustable feet that adapt to different pinion projections
- ON / OFF position indicator also visible from a distance
- Easy-to-adjust, self-locking trip cam
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 70 |
| Območje napetosti | 8 V |
| Gred | Nickel-plated steel |
| Ohišje | Die-cast aluminium EN AB 46100, epoxy powder-coated |
| Preklopna funkcija | Damped or undamped in the end position |
| Vijaki | Stainless steel |
| IP zaščita | EX TDA21 IP66/67 T 85 °C |
| Kabelska uvodnica | M20x1.5, up to four cable glands possible |
| Izhodni tok | Damped <1 mA / undamped >3 mA |
| Opis | End position feedback, with inductive NAMUR sensors, ATEX |
| Različica | with inductive NAMUR sensors, ATEX |
