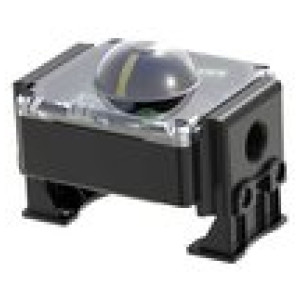

Javljal.kon.položaja, SPDT mikrostikalo, plastic, 4V DC-250 V AC
SKU: 158826RIE
EAN: 4047322644624
End position feedback, with microswitch, plastic, SPDT switch, 4V DC - 250 V AC, Changeover type, 1mA-5mA, IP67,Temp.-20°C to 80°C
Robust type in a plastic housing
- Universal indicator for NAMUR sizes 80 x 30 and 130 x 30
- Height-adjustable feet that adapt to different pinion projections
- ON / OFF position indicator also visible from a distance
- Easy-to-adjust, self-locking trip cam
Povpraševanje
IP zaščita: IP 67, acc. to DIN EN 60529
Kabelska uvodnica: M20x1.5
Ohišje: Fiberglass reinforced plastic
Opis: SPDT - double microswitch
Preklopna funkcija: Changeover, silver-plated contacts
Različica: with microswitch
Trenutni obseg: Max. 5 A
Minimalna preklopna zmogljivost: 50 mA at 24 V DC
Nominalna preklopna zmogljivost: 50 mA to 5 A at 250 V AC
| Šifra | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|
| 158826RIE | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
Opis
End position feedback, with microswitch, plastic, SPDT switch, 4V DC - 250 V AC, Changeover type, 1mA-5mA, IP67,Temp.-20°C to 80°C
Robust type in a plastic housing
- Universal indicator for NAMUR sizes 80 x 30 and 130 x 30
- Height-adjustable feet that adapt to different pinion projections
- ON / OFF position indicator also visible from a distance
- Easy-to-adjust, self-locking trip cam
Tehnični podatki in specifikacije
| Trenutni obseg | Max. 5 A |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 80 |
| Ohišje | Fiberglass reinforced plastic |
| Preklopna funkcija | Changeover, silver-plated contacts |
| IP zaščita | IP 67, acc. to DIN EN 60529 |
| Kabelska uvodnica | M20x1.5 |
| Minimalna preklopna zmogljivost | 50 mA at 24 V DC |
| Nominalna preklopna zmogljivost | 50 mA to 5 A at 250 V AC |
| Glava | Transparent plastic lid |
| Opis | SPDT - double microswitch |
| Različica | with microswitch |
