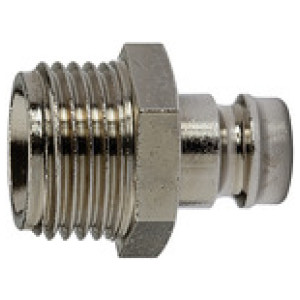

Kaljeni cevni vtikač DN 9, zunanji navoj, M14x1.5, dolžina 15
SKU: 107975RIE
EAN: 4047322259064
Tempered plug-in nipple DN 9, Exterior thread, Brass 2.0401, M14x1.5, Operating pressure max. 15 bar, Temp. -20 °C to 160 °C
Compatible with HASCO Z 8 system.
For temperature control applications involving hot or cold water or heat transfer oil.
Optionally with free passage, one or both sides sealing.
Female-threaded couplings and plugs with female-threaded PTFE seal.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Kaljeni cevni vtikač DN 9, zunanji navoj, M14x1.5, dolžina 15
Krogla: Stainless steel
Material: Brass 2.0401
Navoj: M14x1.5
Pritrdilni obroč: Stainless steel
Srednje: Air, water, oil, vacuum
Tesnilo: FPM (PTFE coated)
Vzmet: Stainless steel
Material: Brass 2.0401
Navoj: M14x1.5
Pritrdilni obroč: Stainless steel
Srednje: Air, water, oil, vacuum
Tesnilo: FPM (PTFE coated)
Vzmet: Stainless steel
| Šifra | Material | Navoj | a/f [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 107980RIE | Nickel-plated brass | G 1/2 | 22 | 31.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 107976RIE | Brass 2.0401 | M16x1.5 | 17 | 26.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 107979RIE | Nickel-plated brass | G 3/8 | 17 | 26.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 107978RIE | Nickel-plated brass | G 1/4 | 15 | 26.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 107977RIE | Nickel-plated brass | G 1/8 | 15 | 24.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 107975RIE | Brass 2.0401 | M14x1.5 | 15 | 26.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Tempered plug-in nipple DN 9, Exterior thread, Brass 2.0401, M14x1.5, Operating pressure max. 15 bar, Temp. -20 °C to 160 °C
Compatible with HASCO Z 8 system.
For temperature control applications involving hot or cold water or heat transfer oil.
Optionally with free passage, one or both sides sealing.
Female-threaded couplings and plugs with female-threaded PTFE seal.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 15 |
| Srednje | Air, water, oil, vacuum |
| Material | Brass 2.0401 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 160 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 160 |
| Tesnilo | FPM (PTFE coated) |
| Krogla | Stainless steel |
| Vzmet | Stainless steel |
| Pritrdilni obroč | Stainless steel |
| Dolžina [mm] | 26.0 |
| a/f [mm] | 15 |
| Navoj | M14x1.5 |
