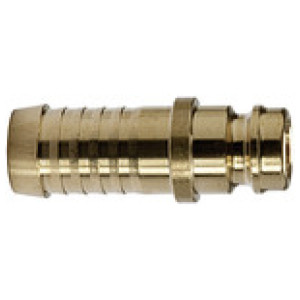

Kaljeni vložek DN 9,Medenina, cevni priklop 13 mm
SKU: 107974RIE
EAN: 4047322259040
Tempered plug-on connector DN 9, Brass 2.0401, Hose connection 13 mm, Operating pressure max. 15 bar, Temp. -20 °C to 160 °C
Compatible with HASCO Z 8 system.
For temperature control applications involving hot or cold water or heat transfer oil.
Optionally with free passage, one or both sides sealing.
Female-threaded couplings and plugs with female-threaded PTFE seal.
Čas dobave: Predvidoma 3 - 5 dni
1,96 €
| Šifra | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|
| 107974RIE | Čas dobave: Predvidoma 3 - 5 dni | 1,96 € |  |
Opis
Tempered plug-on connector DN 9, Brass 2.0401, Hose connection 13 mm, Operating pressure max. 15 bar, Temp. -20 °C to 160 °C
Compatible with HASCO Z 8 system.
For temperature control applications involving hot or cold water or heat transfer oil.
Optionally with free passage, one or both sides sealing.
Female-threaded couplings and plugs with female-threaded PTFE seal.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 15 |
| Srednje | Air, water, oil, vacuum |
| Material | Brass 2.0401 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 160 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 160 |
| Tesnilo | FPM (PTFE coated) |
| Krogla | Stainless steel |
| Vzmet | Stainless steel |
| Pritrdilni obroč | Stainless steel |
| Priključek za cev [mm] | 13 |
| Dolžina [mm] | 42.0 |
