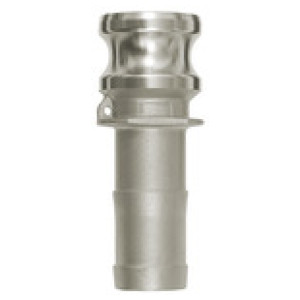

Kamlok hitra spojka, cevFi cevi, E tip, 1.4401, I.D. 25
SKU: 108148RIE
EAN: 4047322404891
Kamlok quick-connect plug, Hose sleeve, E type, Stainless steel 1.4401, for hose I.D. 25, Plug Ø 37 mm, Pressure max. 16 bar
High-quality, robust, universal coupling system with a safety clamp for quick and easy connection of two hoses or for joining one hose to a machine connection.
A male part and a female part are joined together by shifting the handles.
There is no need to turn the hose!
Kamlok stainless steel couplings are designed for use with corrosive media in the chemical and petrochemical industries, steelmaking, shipbuilding, agriculture, etc.
| Šifra | Za cev I.D. | Vtič Ø [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 108154RIE | 100 | 120 | 181.0 | Čas dobave: Predvidoma 3 - 5 dni | 155,55 € |  | |
| 108153RIE | 75 | 92 | 159.5 | Čas dobave: Predvidoma 3 - 5 dni | 98,97 € | | |
| 108150RIE | 38 | 53 | 112.0 | Čas dobave: Predvidoma 3 - 5 dni | 32,10 € | | |
| 108147RIE | 19 | 32 | 86.7 | Čas dobave: Predvidoma 3 - 5 dni | 11,80 € | | |
| 108152RIE | 63 | 76 | 138.0 | Čas dobave: Predvidoma 3 - 5 dni | 70,33 € | | |
| 108151RIE | 50 | 63 | 143.0 | Čas dobave: Predvidoma 3 - 5 dni | 51,51 € | | |
| 108149RIE | 32 | 46 | 112.0 | Čas dobave: Predvidoma 3 - 5 dni | 25,79 € | | |
| 108148RIE | 25 | 37 | 97.5 | Čas dobave: Predvidoma 3 - 5 dni | 15,69 € | |
Opis
Kamlok quick-connect plug, Hose sleeve, E type, Stainless steel 1.4401, for hose I.D. 25, Plug Ø 37 mm, Pressure max. 16 bar
High-quality, robust, universal coupling system with a safety clamp for quick and easy connection of two hoses or for joining one hose to a machine connection.
A male part and a female part are joined together by shifting the handles.
There is no need to turn the hose!
Kamlok stainless steel couplings are designed for use with corrosive media in the chemical and petrochemical industries, steelmaking, shipbuilding, agriculture, etc.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 16 |
| Vtič Ø [mm] | 37 |
| Za cev I.D. | 25 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 95 |
| Tesnilo | NBR, resistant to oils and benzine |

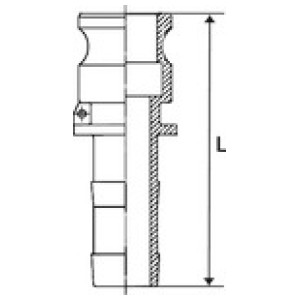

| L [mm] | 97.5 |
