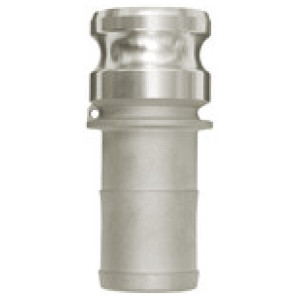

Kamlok hitra spojka, cevFi cevi, E tip, Alu, I.D. 25
SKU: 108075RIE
EAN: 4047322403634
Kamlok quick-connect plug, Hose sleeve, E type, Aluminium, for hose I.D. 25, Plug Ø 37 mm, Pressure max. 16 bar, Temp. max. 68°C
Coupling system for quick and easy connection of two hoses or for joining one hose to a machine connection.
A male part and a female part are joined together by shifting the handles.
There is no need to turn the hose!
Kamlok couplings are used for a wide range of applications in industrial plant and mechanical engineering, tank and container construction, the chemical industry, food processing, mining, refuelling systems, defence technology, etc.
| Šifra | Za cev I.D. | Vtič Ø [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 108080RIE | 75 | 92 | 157.0 | Čas dobave: Predvidoma 3 - 5 dni | 21,87 € |  | |
| 108077RIE | 38 | 53 | 123.5 | Čas dobave: Predvidoma 3 - 5 dni | 8,42 € | | |
| 108078RIE | 50 | 63 | 142.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,02 € | | |
| 108076RIE | 32 | 45 | 109.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,12 € | | |
| 108079RIE | 63 | 76 | 150.5 | Čas dobave: Predvidoma 3 - 5 dni | 15,98 € | | |
| 108074RIE | 19 | 32 | 85.3 | Čas dobave: Predvidoma 3 - 5 dni | 5,27 € | | |
| 108081RIE | 100 | 120 | 166.0 | Čas dobave: Predvidoma 3 - 5 dni | 33,06 € | | |
| 108075RIE | 25 | 37 | 100.8 | Čas dobave: Predvidoma 3 - 5 dni | 6,61 € | |
Opis
Kamlok quick-connect plug, Hose sleeve, E type, Aluminium, for hose I.D. 25, Plug Ø 37 mm, Pressure max. 16 bar, Temp. max. 68°C
Coupling system for quick and easy connection of two hoses or for joining one hose to a machine connection.
A male part and a female part are joined together by shifting the handles.
There is no need to turn the hose!
Kamlok couplings are used for a wide range of applications in industrial plant and mechanical engineering, tank and container construction, the chemical industry, food processing, mining, refuelling systems, defence technology, etc.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 16 |
| Vtič Ø [mm] | 37 |
| Za cev I.D. | 25 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 68 |
| Tesnilo | NBR, resistant to oils and benzine |
| L [mm] | 100.8 |
