Kamlok hitra spojka, zunanji navoj, F tip, 1.4401, R 4
SKU: 108138RIE
EAN: 4047322404785

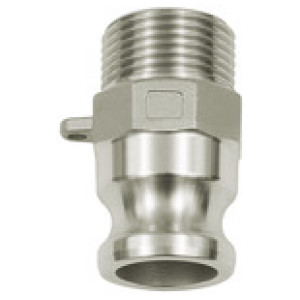

Kamlok quick-connect plug with exterior thread, F type, Stainless steel 1.4401, R 4, Plug Ø 120 mm, Pressure max. 16 bar
High-quality, robust, universal coupling system with a safety clamp for quick and easy connection of two hoses or for joining one hose to a machine connection.
A male part and a female part are joined together by shifting the handles.
There is no need to turn the hose!
Kamlok stainless steel couplings are designed for use with corrosive media in the chemical and petrochemical industries, steelmaking, shipbuilding, agriculture, etc.
Povpraševanje

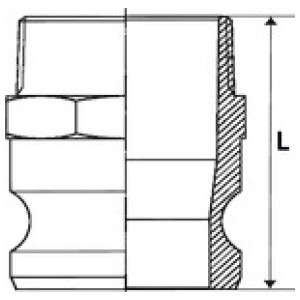

| Šifra | Navoj | Vtič Ø [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 108134RIE | R 1 1/2 | 53 | 73.8 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 108135RIE | R 2 | 63 | 83.5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 108131RIE | R 3/4 | 32 | 53.5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 108133RIE | R 1 1/4 | 46 | 72.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 108137RIE | R 3 | 92 | 91.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 108136RIE | R 2 1/2 | 76 | 89.5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 108132RIE | R 1 | 37 | 60.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 108138RIE | R 4 | 120 | 97.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Kamlok quick-connect plug with exterior thread, F type, Stainless steel 1.4401, R 4, Plug Ø 120 mm, Pressure max. 16 bar
High-quality, robust, universal coupling system with a safety clamp for quick and easy connection of two hoses or for joining one hose to a machine connection.
A male part and a female part are joined together by shifting the handles.
There is no need to turn the hose!
Kamlok stainless steel couplings are designed for use with corrosive media in the chemical and petrochemical industries, steelmaking, shipbuilding, agriculture, etc.
Tehnični podatki in specifikacije
| Navoj | R 4 |
| Max. obratovalni tlak [bar] | 16 |
| Vtič Ø [mm] | 120 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 95 |
| Tesnilo | NBR, resistant to oils and benzine |
| L [mm] | 97.0 |
