Kamlok tesnilni pokrovDC tip1.4401Vel. 4for plug Ø 120
SKU: 108130RIE
EAN: 4047322404655

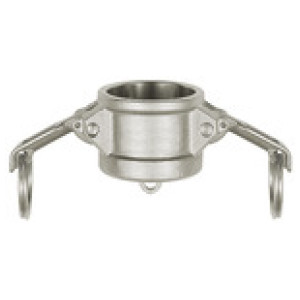

Kamlok closing cap for quick-connect plug, DC type, Stainless steel 1.4401, Size 4, for plug Ø 120 mm, Pressure max. 16 bar
High-quality, robust, universal coupling system with a safety clamp for quick and easy connection of two hoses or for joining one hose to a machine connection.
A male part and a female part are joined together by shifting the handles.
There is no need to turn the hose!
Kamlok stainless steel couplings are designed for use with corrosive media in the chemical and petrochemical industries, steelmaking, shipbuilding, agriculture, etc.
All Kamlok quick coupling boxes and Kamlok closure boxes are supplied with NBR seal.
Povpraševanje

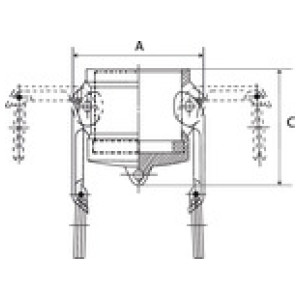

A [mm]: 159.9
| Šifra | Velikost | C [mm] | Za vtič Ø [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 108129RIE | 3 | 67.0 | 92 | 131.8 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 108126RIE | 1 1/2 | 55.0 | 54 | 87.4 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 108125RIE | 1 1/4 | 56.0 | 46 | 79.7 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 108123RIE | 3/4 | 40.0 | 32 | 61.3 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 108127RIE | 2 | 62.0 | 64 | 97.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 108128RIE | 2 1/2 | 63.0 | 76.5 | 109.5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 108124RIE | 1 | 45.0 | 37 | 68.2 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 108130RIE | 4 | 70.5 | 120 | 159.9 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Kamlok closing cap for quick-connect plug, DC type, Stainless steel 1.4401, Size 4, for plug Ø 120 mm, Pressure max. 16 bar
High-quality, robust, universal coupling system with a safety clamp for quick and easy connection of two hoses or for joining one hose to a machine connection.
A male part and a female part are joined together by shifting the handles.
There is no need to turn the hose!
Kamlok stainless steel couplings are designed for use with corrosive media in the chemical and petrochemical industries, steelmaking, shipbuilding, agriculture, etc.
All Kamlok quick coupling boxes and Kamlok closure boxes are supplied with NBR seal.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 16 |
| Velikost | 4 |
| Za vtič Ø [mm] | 120 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 95 |
| Tesnilo | NBR, resistant to oils and benzine |
| A [mm] | 159.9 |
| C [mm] | 70.5 |
