Koleno 40 45°, Rp 2 i.R 2 a.Črno železno črno
SKU: 133609RIE
EAN: 4047322479738

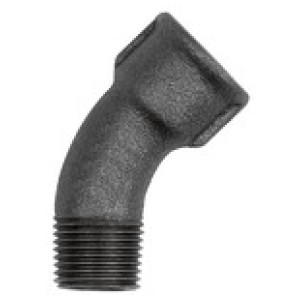

Elbow 40, 45°, Rp 2 IT, R 2 ET, black malleable iron fitting, Operating temp. -20 °C to 300 °C, ISO 7-1
According to DIN EN 10242 (previously 2950).
Malleable iron cast fittings in black steel, non-galvanized, is the classic fitting series in connection series in piping construction. Our malleable iron cast fittings are characterized by high mechanical strength and standardized fitting technology.
Working minimal temperature = -20 °C, 25 bar.
Working pressure for temperature range from -20 °C to 120 °C: 25 bar.
Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.
Obrestno financiranje
- 10,07 € x 6 mesecev
- 19,92 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 133606RIE | Rp/R 3/4 | Čas dobave: Predvidoma 3 - 5 dni | 5,34 € |  | |
| 133605RIE | Rp/R 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 3,88 € | | |
| 133604RIE | Rp/R 3/8 | Čas dobave: Predvidoma 3 - 5 dni | 4,39 € | | |
| 133608RIE | Rp/R 1 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 24,25 € | | |
| 133603RIE | Rp/R 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 6,19 € | | |
| 133607RIE | Rp/R 1 | Čas dobave: Predvidoma 3 - 5 dni | 8,04 € | | |
| 133610RIE | Rp/R 2 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 58,74 € | | |
| 133609RIE | Rp/R 2 | Čas dobave: Predvidoma 3 - 5 dni | 54,80 € | |
Opis
Elbow 40, 45°, Rp 2 IT, R 2 ET, black malleable iron fitting, Operating temp. -20 °C to 300 °C, ISO 7-1
According to DIN EN 10242 (previously 2950).
Malleable iron cast fittings in black steel, non-galvanized, is the classic fitting series in connection series in piping construction. Our malleable iron cast fittings are characterized by high mechanical strength and standardized fitting technology.
Working minimal temperature = -20 °C, 25 bar.
Working pressure for temperature range from -20 °C to 120 °C: 25 bar.
Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 300 |
| Material | Black malleable iron B350-10, design symbol A |
| Površina | Black |
| Navoj | Rp/R 2 |
| Standardni navoj | acc. ISO 7-1 |
