* slike so simbolične

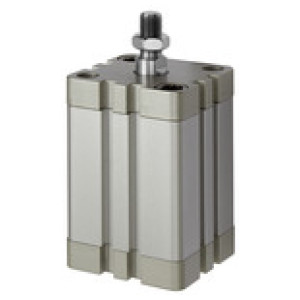

Komp. cilind. del. v dveh smereh, bat Ø20,hod 55,M5,ISO21287
SKU: 155600RIE
EAN: 4047322619783
Compact cyl.ISO 21287, double-acting, male piston rod magnet, PistonØ20, Stroke55, M5, Work.press.max.10bar, Temp.-20°C to 70°C
Series acc. to ISO 21287 characterised by a very short and compact design.
The standard type features a magnetic piston.
Piston rod optionally with male or female thread.
Suitable for filtered, unlubricated or lubricated compressed air.
If lubrication is used, it must be continuous.
Povpraševanje
Batnica: S45C steel, hard chrome-plated
ET batnice: M8x1.25

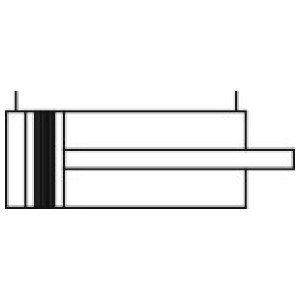

Ffunkcija: double-acting
Gewinde Kolbenstange: male piston rod
Magnet: with magnet
Ovoj: Anodised aluminium jacket with T-slots
Serija: ACE series
Standard: acc. to ISO 21287
| Šifra | ET batnice | Povezava | Bat Ø [mm] | Stroke [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 155566RIE | M5x0.8 | M5 | 12 | 5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 155567RIE | M5x0.8 | M5 | 12 | 10 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 155568RIE | M5x0.8 | M5 | 12 | 15 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 155569RIE | M5x0.8 | M5 | 12 | 20 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 155570RIE | M5x0.8 | M5 | 12 | 25 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 155571RIE | M5x0.8 | M5 | 12 | 30 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 155572RIE | M5x0.8 | M5 | 12 | 35 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 155573RIE | M5x0.8 | M5 | 12 | 40 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 155574RIE | M5x0.8 | M5 | 12 | 45 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 155575RIE | M5x0.8 | M5 | 12 | 50 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Compact cyl.ISO 21287, double-acting, male piston rod magnet, PistonØ20, Stroke55, M5, Work.press.max.10bar, Temp.-20°C to 70°C
Series acc. to ISO 21287 characterised by a very short and compact design.
The standard type features a magnetic piston.
Piston rod optionally with male or female thread.
Suitable for filtered, unlubricated or lubricated compressed air.
If lubrication is used, it must be continuous.
Tehnični podatki in specifikacije
| Magnet | with magnet |
| Ffunkcija | double-acting |
| Serija | ACE series |
| Standard | acc. to ISO 21287 |
| Gewinde Kolbenstange | male piston rod |
| Max. delovni tlak [bar] | 10 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 70 |
| Tesnilo | NBR |
| Ovoj | Anodised aluminium jacket with T-slots |
| Bat Ø [mm] | 20 |
| Stroke [mm] | 55 |
| Povezava | M5 |
| Batnica | S45C steel, hard chrome-plated |
| ET batnice | M8x1.25 |
| Bat | Aluminium |
