* slike so simbolične

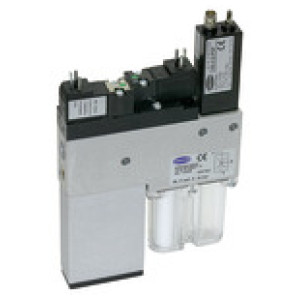

Kompakt.ejektor CP digi. vakum. stikalo, velikost šobe2.5 mm
SKU: 108413RIE
EAN: 4047322198783
Compact ejector »CP«, Digital vacuum switch, Nozzle size 2.5 mm, NC, Compressed air / vacuum conn. G 1/4 IT, G 3/8 IT, PN 5-6 bar

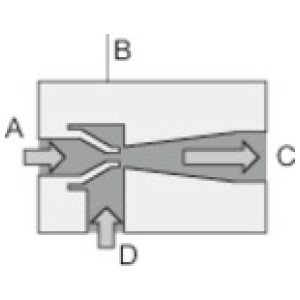

Purely pneumatic vacuum ejector that operates on the Venturi principle. Compressed air enters the ejector at A and flows through the nozzle B. This results in a vacuum immediately behind the nozzle outlet, and air is drawn in through the vacuum inlet D. This air and the driving air leave the ejector via the silencer C.
Properties:
- Vacuum generator with integrated control valves and system monitoring functions
- Gripping and blowing off can be controlled without the need for external valves
- Optimised air consumption thanks to many models with differing suction capacities
- Minimum energy costs in continuous operation thanks to automatic air-saving
- Easy adjustment with foil keypad and LED display of the settings
Applications:
Handling of air-tight or slightly porous workpieces in fully automated handling
systems, e.g. in the robotics, automotive, packaging, electronics, electrical
engineering and metalworking industries.
Obrestno financiranje
- 100 € + 39,06 € x 48 mesecev
- 100 € + 49,92 € x 36 mesecev
- 100 € + 71,71 € x 24 mesecev
- 100 € + 137,27 € x 12 mesecev
- 100 € + 268,53 € x 6 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Dovod stisnjenega zraka | Dovod vakuuma | Položaj sesalnega ventila v mirovanju | Velikost šobe [mm] | Max. obratovalni tlak [bar] | Premer [mm] | Dolžina [mm] | Max. stopnja sesanja [l/min] | Višina [mm] | Poraba zraka med evakuacijo [l/min] | Teža [g] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 108414RIE | G 1/4 IT | G 3/8 IT | NO | 2.5 | 6 | 22.0 | 113.0 | 161 | 183.0 | 310 | 485.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.465,28 € |  | |
| 108411RIE | G 1/4 IT | G 3/8 IT | NC | 2 | 6 | 22.0 | 113.0 | 116 | 168.0 | 190 | 465.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.396,22 € | | |
| 108412RIE | G 1/4 IT | G 3/8 IT | NO | 2 | 6 | 22.0 | 113.0 | 116 | 168.0 | 190 | 465.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.396,22 € | | |
| 108409RIE | G 1/8 IT | G 1/8 IT | NC | 1.5 | 5 | 20.0 | 72.0 | 65 | 164.0 | 117 | 275.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.255,64 € | | |
| 108410RIE | G 1/8 IT | G 1/8 IT | NO | 1.5 | 5 | 20.0 | 72.0 | 65 | 164.0 | 117 | 275.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.252,05 € | | |
| 108413RIE | G 1/4 IT | G 3/8 IT | NC | 2.5 | 6 | 22.0 | 113.0 | 161 | 183.0 | 310 | 485.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.466,51 € | |
Opis
Compact ejector »CP«, Digital vacuum switch, Nozzle size 2.5 mm, NC, Compressed air / vacuum conn. G 1/4 IT, G 3/8 IT, PN 5-6 bar
Purely pneumatic vacuum ejector that operates on the Venturi principle. Compressed air enters the ejector at A and flows through the nozzle B. This results in a vacuum immediately behind the nozzle outlet, and air is drawn in through the vacuum inlet D. This air and the driving air leave the ejector via the silencer C.
Properties:
- Vacuum generator with integrated control valves and system monitoring functions
- Gripping and blowing off can be controlled without the need for external valves
- Optimised air consumption thanks to many models with differing suction capacities
- Minimum energy costs in continuous operation thanks to automatic air-saving
- Easy adjustment with foil keypad and LED display of the settings
Applications:
Handling of air-tight or slightly porous workpieces in fully automated handling
systems, e.g. in the robotics, automotive, packaging, electronics, electrical
engineering and metalworking industries.
Tehnični podatki in specifikacije
| Min. obratovalni tlak [bar] | 5 |
| Max. obratovalni tlak [bar] | 6 |
| Telo | Anodised aluminium |
| Integrirano | NC blow-off valve, filter, silencer, non-return valve |
| Velikost šobe [mm] | 2.5 |
| Dovod stisnjenega zraka | G 1/4 IT |
| Dovod vakuuma | G 3/8 IT |
| Max. stopnja sesanja [l/min] | 161 |
| Poraba zraka med evakuacijo [l/min] | 310 |
| Položaj sesalnega ventila v mirovanju | NC |
| Dolžina [mm] | 113.0 |
| Premer [mm] | 22.0 |
| Višina [mm] | 183.0 |
| Teža [g] | 485.0 |
