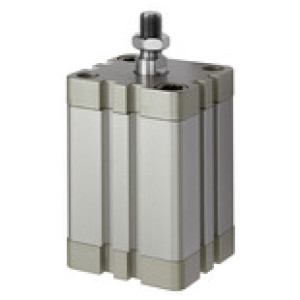

Kompaktni cilinder, enosmerni, bat Ø 16, hod 5,M5,ISO21287
SKU: 155861RIE
EAN: 4047322622394
Compact cyl.ISO 21287, single-acting, male piston rod,retr.,magnet,PistonØ16,Stroke5,M5, Work.press.max.10bar,Temp.-20°C to 70°C
Series acc. to ISO 21287 characterised by a very short and compact design.
The standard type features a magnetic piston.
Piston rod optionally with male or female thread.
Suitable for filtered, unlubricated or lubricated compressed air.
If lubrication is used, it must be continuous.
Čas dobave 3 - 5 dni
39,49 €
31,59 €
| Šifra | ET batnice | Povezava | Stroke [mm] | Bat Ø [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 155894RIE | M12x1.25 | G 1/8 | 20 | 63 | Čas dobave 3 - 5 dni | 73,54 € |  | |
| 155902RIE | M16x1.5 | G 1/8 | 10 | 100 | Čas dobave 3 - 5 dni | 135,83 € | | |
| 155879RIE | M10x1.25 | G 1/8 | 20 | 32 | Čas dobave 3 - 5 dni | 42,54 € | | |
| 155881RIE | M10x1.25 | G 1/8 | 5 | 40 | Čas dobave 3 - 5 dni | 47,25 € | | |
| 155871RIE | M8x1.25 | M5 | 5 | 25 | Čas dobave 3 - 5 dni | 36,91 € | | |
| 155859RIE | M5x0.8 | M5 | 5 | 12 | Čas dobave 3 - 5 dni | 31,46 € | | |
| 155886RIE | M12x1.25 | G 1/8 | 5 | 50 | Čas dobave 3 - 5 dni | 55,40 € | | |
| 155890RIE | M12x1.25 | G 1/8 | 25 | 50 | Čas dobave 3 - 5 dni | 58,99 € | | |
| 155880RIE | M10x1.25 | G 1/8 | 25 | 32 | Čas dobave 3 - 5 dni | 43,18 € | | |
| 155900RIE | M16x1.5 | G 1/8 | 25 | 80 | Čas dobave 3 - 5 dni | 111,26 € | | |
| 155904RIE | M16x1.5 | G 1/8 | 20 | 100 | Čas dobave 3 - 5 dni | 139,25 € | | |
| 155891RIE | M12x1.25 | G 1/8 | 5 | 63 | Čas dobave 3 - 5 dni | 70,41 € | | |
| 155873RIE | M8x1.25 | M5 | 15 | 25 | Čas dobave 3 - 5 dni | 38,18 € | | |
| 155889RIE | M12x1.25 | G 1/8 | 20 | 50 | Čas dobave 3 - 5 dni | 57,89 € | | |
| 155862RIE | M6x1.0 | M5 | 10 | 16 | Čas dobave 3 - 5 dni | 31,76 € | | |
| 155864RIE | M6x1.0 | M5 | 20 | 16 | Čas dobave 3 - 5 dni | 32,86 € | | |
| 155901RIE | M16x1.5 | G 1/8 | 5 | 100 | Čas dobave 3 - 5 dni | 134,10 € | | |
| 155877RIE | M10x1.25 | G 1/8 | 10 | 32 | Čas dobave 3 - 5 dni | 40,86 € | | |
| 155878RIE | M10x1.25 | G 1/8 | 15 | 32 | Čas dobave 3 - 5 dni | 41,61 € | | |
| 155905RIE | M16x1.5 | G 1/8 | 25 | 100 | Čas dobave 3 - 5 dni | 140,98 € | | |
| 155863RIE | M6x1.0 | M5 | 15 | 16 | Čas dobave 3 - 5 dni | 32,57 € | | |
| 155883RIE | M10x1.25 | G 1/8 | 15 | 40 | Čas dobave 3 - 5 dni | 48,50 € | | |
| 155896RIE | M16x1.5 | G 1/8 | 5 | 80 | Čas dobave 3 - 5 dni | 106,09 € | | |
| 155885RIE | M10x1.25 | G 1/8 | 25 | 40 | Čas dobave 3 - 5 dni | 50,06 € | | |
| 155866RIE | M8x1.25 | M5 | 5 | 20 | Čas dobave 3 - 5 dni | 33,32 € | | |
| 155865RIE | M6x1.0 | M5 | 25 | 16 | Čas dobave 3 - 5 dni | 33,32 € | | |
| 155897RIE | M16x1.5 | G 1/8 | 10 | 80 | Čas dobave 3 - 5 dni | 107,32 € | | |
| 155899RIE | M16x1.5 | G 1/8 | 20 | 80 | Čas dobave 3 - 5 dni | 109,99 € | | |
| 155860RIE | M5x0.8 | M5 | 10 | 12 | Čas dobave 3 - 5 dni | 31,59 € | | |
| 155887RIE | M12x1.25 | G 1/8 | 10 | 50 | Čas dobave 3 - 5 dni | 56,03 € | | |
| 155869RIE | M8x1.25 | M5 | 20 | 20 | Čas dobave 3 - 5 dni | 34,59 € | | |
| 155882RIE | M10x1.25 | G 1/8 | 10 | 40 | Čas dobave 3 - 5 dni | 47,87 € | | |
| 155876RIE | M10x1.25 | G 1/8 | 5 | 32 | Čas dobave 3 - 5 dni | 40,38 € | | |
| 155875RIE | M8x1.25 | M5 | 25 | 25 | Čas dobave 3 - 5 dni | 39,58 € | | |
| 155888RIE | M12x1.25 | G 1/8 | 15 | 50 | Čas dobave 3 - 5 dni | 57,26 € | | |
| 155903RIE | M16x1.5 | G 1/8 | 15 | 100 | Čas dobave 3 - 5 dni | 137,53 € | | |
| 155874RIE | M8x1.25 | M5 | 20 | 25 | Čas dobave 3 - 5 dni | 39,12 € | | |
| 155884RIE | M10x1.25 | G 1/8 | 20 | 40 | Čas dobave 3 - 5 dni | 49,43 € | | |
| 155870RIE | M8x1.25 | M5 | 25 | 20 | Čas dobave 3 - 5 dni | 35,70 € | | |
| 155868RIE | M8x1.25 | M5 | 15 | 20 | Čas dobave 3 - 5 dni | 34,42 € | | |
| 155898RIE | M16x1.5 | G 1/8 | 15 | 80 | Čas dobave 3 - 5 dni | 108,59 € | | |
| 155872RIE | M8x1.25 | M5 | 10 | 25 | Čas dobave 3 - 5 dni | 37,38 € | | |
| 155867RIE | M8x1.25 | M5 | 10 | 20 | Čas dobave 3 - 5 dni | 33,66 € | | |
| 155893RIE | M12x1.25 | G 1/8 | 15 | 63 | Čas dobave 3 - 5 dni | 72,62 € | | |
| 155892RIE | M12x1.25 | G 1/8 | 10 | 63 | Čas dobave 3 - 5 dni | 71,68 € | | |
| 155895RIE | M12x1.25 | G 1/8 | 25 | 63 | Čas dobave 3 - 5 dni | 74,80 € | | |
| 155861RIE | M6x1.0 | M5 | 5 | 16 | Čas dobave 3 - 5 dni | 31,59 € | |
Opis
Compact cyl.ISO 21287, single-acting, male piston rod,retr.,magnet,PistonØ16,Stroke5,M5, Work.press.max.10bar,Temp.-20°C to 70°C
Series acc. to ISO 21287 characterised by a very short and compact design.
The standard type features a magnetic piston.
Piston rod optionally with male or female thread.
Suitable for filtered, unlubricated or lubricated compressed air.
If lubrication is used, it must be continuous.
Tehnični podatki in specifikacije
| Magnet | with magnet |
| Ffunkcija | single-acting |
| Serija | ASE series |
| Starting position | pressureless in the retracted position |
| Standard | acc. to ISO 21287 |
| Gewinde Kolbenstange | male piston rod |
| Max. delovni tlak [bar] | 10 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 70 |
| Tesnilo | NBR |
| Ovoj | Anodised aluminium jacket with T-slots |
| Bat Ø [mm] | 16 |
| Stroke [mm] | 5 |
| Povezava | M5 |
| Batnica | S45C steel, hard chrome-plated |
| ET batnice | M6x1.0 |
| Bat | Aluminium |
