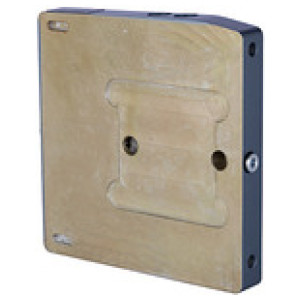

Končni ploščati ventilni terminal HDM, slepi (za zaprtje sistema)
SKU: 106698RIE
EAN: 0227301500
End plate for valve terminal HDM, Blind (to close off the system), Temp. -10 °C to 60 °C
These compact valve terminals, with a maximum flow rate of 800 Nl/min, can be individually adapted to the specific conditions of each application thanks tot he wide range of functions and various input and intermediate plates.
Since each valve terminal is a customer-specific combination of a series of individual elements, the catalogue only lists the available input, intermediate and end plates as well as the different valve discs and the 25-pin multi-pole connectors.
Suitable for filtered, unlubricated or lubricated compressed air. If lubrication is used, it must be continuous.
Monostable (non-latching) version of manual control also available on request.
The operating pressure is based on the installed input plates.
| Šifra | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|
| 106698RIE | Čas dobave: Predvidoma 3 - 5 dni | 41,88 € |  |
Opis
End plate for valve terminal HDM, Blind (to close off the system), Temp. -10 °C to 60 °C
These compact valve terminals, with a maximum flow rate of 800 Nl/min, can be individually adapted to the specific conditions of each application thanks tot he wide range of functions and various input and intermediate plates.
Since each valve terminal is a customer-specific combination of a series of individual elements, the catalogue only lists the available input, intermediate and end plates as well as the different valve discs and the 25-pin multi-pole connectors.
Suitable for filtered, unlubricated or lubricated compressed air. If lubrication is used, it must be continuous.
Monostable (non-latching) version of manual control also available on request.
The operating pressure is based on the installed input plates.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 60 |
| Vhodna moč | 0.6 W per pilot |
| Ročno upravljanje | latching |
| Poskusno | Max. 16 (e.g. 16 spring return valves) |
| IP zaščita | IP 65 |
| Ffunkcija | blind (to close off the system) |
| Material | aluminium |
