* slike so simbolične

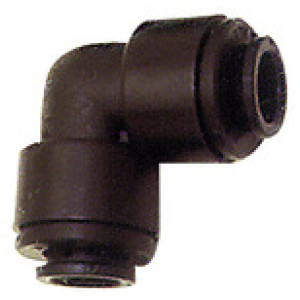

Kotni spojnik POM, za cev zunanjega premera 18 mm
SKU: 110309RIE
EAN: 4047322112291
Angle connector POM, for hose exterior Ø 18 mm, working pressure -0.95 to 10 bar
Lightweight, push-in fittings distinguished by high strength, toughness, resistance to abrasion and impact resistance - ideal for a wide range of applications.
All our push-in fittings made of POM have the following approvals:
drinking water DVGW, KTW, FDA and NSF.
Plastic and metal tubes are connected together quickly and easily. Suitable for compressed air or liquids, with good resistance to a large number of chemicals.

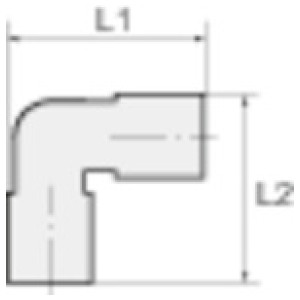

Šifra | Max. delovni tlak [bar] | Za cevi O.D. [mm] | L1 [mm] | L2 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|
110306RIE | 10 | 10 | 35.3 | 35.3 | Čas dobave: Predvidoma 3 - 5 dni | 5,31 € | ||
110308RIE | 10 | 15 | 50.3 | 50.3 | Čas dobave: Predvidoma 3 - 5 dni | 10,33 € | ||
110307RIE | 10 | 12 | 44.0 | 44.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,05 € | ||
110310RIE | 10 | 22 | 66.6 | 66.6 | Čas dobave: Predvidoma 3 - 5 dni | 15,93 € | ||
110303RIE | 16 | 5 | 24.1 | 24.1 | Čas dobave: Predvidoma 3 - 5 dni | 3,25 € | ||
110304RIE | 16 | 6 | 27.1 | 27.1 | Čas dobave: Predvidoma 3 - 5 dni | 3,49 € | ||
110305RIE | 16 | 8 | 29.9 | 29.9 | Čas dobave: Predvidoma 3 - 5 dni | 3,90 € | ||
110302RIE | 16 | 4 | 24.1 | 24.1 | Čas dobave: Predvidoma 3 - 5 dni | 3,25 € | ||
110311RIE | 10 | 28 | 87.7 | 87.7 | Čas dobave: Predvidoma 3 - 5 dni | 27,07 € | ||
110309RIE | 10 | 18 | 59.7 | 59.7 | Čas dobave: Predvidoma 3 - 5 dni | 12,09 € |
Opis
Angle connector POM, for hose exterior Ø 18 mm, working pressure -0.95 to 10 bar
Lightweight, push-in fittings distinguished by high strength, toughness, resistance to abrasion and impact resistance - ideal for a wide range of applications.
All our push-in fittings made of POM have the following approvals:
drinking water DVGW, KTW, FDA and NSF.
Plastic and metal tubes are connected together quickly and easily. Suitable for compressed air or liquids, with good resistance to a large number of chemicals.
Tehnični podatki in specifikacije
Min. delovni tlak [bar] | -0.95 |
Max. delovni tlak [bar] | 10 |
Min. delovna temperatura v zraku [°C] | -20 |
Max. delovna temperatura v zraku [°C] | 65 |
Min. delovna temperatura v vodi [°C] | 1 |
Max. delovna temperatura v vodi [°C] | 70 |
Za cevi O.D. [mm] | 18 |
L1 [mm] | 59.7 |
L2 [mm] | 59.7 |
Material | Acetal polymer (POM) |
