Križni kos 1804 x N.N.Rp 3,č. kovanlit. ž.
SKU: 113015RIE
EAN: 4047322392143

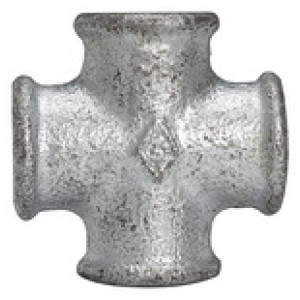

Cross-piece 180, 4 x IT, Rp 3, Operating temperature -20°C to 300°C, black malleable cast iron, Hot-dip galvanised, DIN EN 10242
"Acc. to DIN EN 10242 (formerly DIN 2950)
The classic - and the most popular - screw fitting series for pipe construction.
These fittings are characterized by their high mechanical strength and surface quality to DIN 2444.
They are completely coated with a layer of pure zinc and are therefore suitable for drinking water
Obrestno financiranje
- 16,11 € x 6 mesecev
- 31,86 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 113014RIE | Rp 2 | Čas dobave: Predvidoma 3 - 5 dni | 35,64 € |  | |
| 113013RIE | Rp 1 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 23,77 € | | |
| 113008RIE | Rp 3/8 | Čas dobave: Predvidoma 3 - 5 dni | 7,26 € | | |
| 113012RIE | Rp 1 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 17,80 € | | |
| 113011RIE | Rp 1 | Čas dobave: Predvidoma 3 - 5 dni | 13,19 € | | |
| 113009RIE | Rp 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 7,26 € | | |
| 113010RIE | Rp 3/4 | Čas dobave: Predvidoma 3 - 5 dni | 10,57 € | | |
| 113007RIE | Rp 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 6,62 € | | |
| 113015RIE | Rp 3 | Čas dobave: Predvidoma 3 - 5 dni | 87,75 € | |
Opis
Cross-piece 180, 4 x IT, Rp 3, Operating temperature -20°C to 300°C, black malleable cast iron, Hot-dip galvanised, DIN EN 10242
"Acc. to DIN EN 10242 (formerly DIN 2950)
The classic - and the most popular - screw fitting series for pipe construction.
These fittings are characterized by their high mechanical strength and surface quality to DIN 2444.
They are completely coated with a layer of pure zinc and are therefore suitable for drinking water
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 300 |
| Material | Black malleable iron B350-10, design symbol A |
| Površina | Hot dip galvanised |
| Navoj | Rp 3 |
| Standardni navoj | acc. ISO 7-1 |
