* slike so simbolične

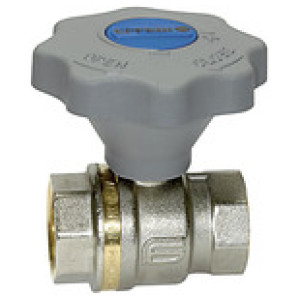

krogelni ventil fina nastavitev, nikljana lahka medenina, G 2
SKU: 103405RIE
EAN: 4047322205979
Ball valve fine adjustment, Potable water suitable, nickel-plated bright brass, Temp. -15 °C to 100 °C, G 2, PN max 40 bar
Brass ball valves in the standard series with fine adjustment.
Unlike our classic standard ball valves (open-close function), this model features a special stem technology that allows finely modulated opening and closing of the line.
The flow rate can be regulated extremely precisely as a result.
The cock is made of low-lead brass with a bare brass surface on the inside. It is thus safe to use with drinking water. This valve complies with the European standard EN 13828 and the working paper DVGW W 570.
Povpraševanje
Kolo: Plastic
Krogla: Chrome-plated brass
Material navojev: Brass with a bare metal surface
Ohišje: Nickel-plated brass (outside), brass with a bare metal surface (inside)
Standardni navoj: G thread acc. to DIN EN ISO 228-1

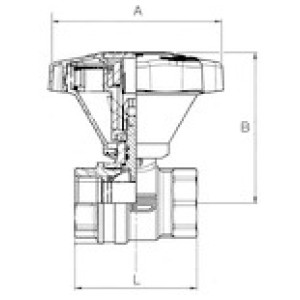

L [mm]: 110.2
B [mm]: 123.0
A [mm]: 130.0
| Šifra | Navoj | DN | L [mm] | B [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 103403RIE | G 1 1/4 | 32 | 81.0 | 110.0 | 130.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 103401RIE | G 3/4 | 20 | 58.0 | 76.0 | 83.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103402RIE | G 1 | 25 | 68.8 | 80.0 | 83.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103405RIE | G 2 | 50 | 110.2 | 123.0 | 130.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103399RIE | G 3/8 | 10 | 43.4 | 63.0 | 83.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103400RIE | G 1/2 | 15 | 50.1 | 70.0 | 83.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Ball valve fine adjustment, Potable water suitable, nickel-plated bright brass, Temp. -15 °C to 100 °C, G 2, PN max 40 bar
Brass ball valves in the standard series with fine adjustment.
Unlike our classic standard ball valves (open-close function), this model features a special stem technology that allows finely modulated opening and closing of the line.
The flow rate can be regulated extremely precisely as a result.
The cock is made of low-lead brass with a bare brass surface on the inside. It is thus safe to use with drinking water. This valve complies with the European standard EN 13828 and the working paper DVGW W 570.
Tehnični podatki in specifikacije
| Ohišje | Nickel-plated brass (outside), brass with a bare metal surface (inside) |
| Max. obratovalni tlak [bar] | 40 |
| Min. delovna temperatura [°C] | -15 |
| Max. delovna temperatura [°C] | 100 |
| Krogla | Chrome-plated brass |
| Krogelno tesnilo | PTFE |
| Stebelno tesnilo | NBR |
| DVGW odobritev | DIN EN 13828:2003-12, DVGW W 570 |
| Material navojev | Brass with a bare metal surface |
| Kolo | Plastic |
| Navoj | G 2 |
| DN | 50 |
| Standardni navoj | G thread acc. to DIN EN ISO 228-1 |
| L [mm] | 110.2 |
| A [mm] | 130.0 |
| B [mm] | 123.0 |
