* slike so simbolične

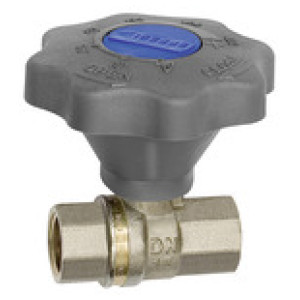

krogelni ventil fina nastavitev, nikljana lahka medenina, Rp 1
SKU: 138875RIE
EAN: 4047322527576
Ball valve fine adjustment, Potable water suitable, nickel-plated bright brass, Temp. -15°C to 120°C, Rp 1, DN 25, PN max. 40 bar
Brass ball valves in the standard series with fine adjustment.
Unlike our classic standard ball valves (open-close function), this model features a special stem technology that allows finely modulated opening and closing of the line.
The flow rate can be regulated extremely precisely as a result.
The cock is made of low-lead brass with a bare brass surface on the inside. It is thus safe to use with drinking water. This valve complies with the European standard EN 13828 and the working paper DVGW W 570.
| Šifra | Navoj | DN | PN [bar] | L [mm] | B [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 138874RIE | Rp 3/4 | 20 | 50 | 69.6 | 75.6 | 83.2 | Čas dobave: Predvidoma 3 - 5 dni | 35,26 € |  | |
| 138876RIE | Rp 1 1/4 | 32 | 40 | 95.8 | 113.3 | 129.6 | Čas dobave: Predvidoma 3 - 5 dni | 76,99 € | | |
| 138878RIE | Rp 2 | 50 | 40 | 127.4 | 128.8 | 129.6 | Čas dobave: Predvidoma 3 - 5 dni | 152,83 € | | |
| 138871RIE | Rp 1/4 | 8 | 50 | 45.7 | 63.8 | 83.2 | Čas dobave: Predvidoma 3 - 5 dni | 28,67 € | | |
| 138873RIE | Rp 1/2 | 15 | 50 | 61.1 | 70.7 | 83.2 | Čas dobave: Predvidoma 3 - 5 dni | 30,32 € | | |
| 138875RIE | Rp 1 | 25 | 40 | 83.5 | 79.7 | 83.2 | Čas dobave: Predvidoma 3 - 5 dni | 46,64 € | | |
| 138872RIE | Rp 3/8 | 10 | 50 | 48.6 | 63.8 | 83.2 | Čas dobave: Predvidoma 3 - 5 dni | 28,67 € | | |
| 138877RIE | Rp 1 1/2 | 40 | 40 | 106.4 | 119.0 | 129.6 | Čas dobave: Predvidoma 3 - 5 dni | 101,42 € | |
Opis
Ball valve fine adjustment, Potable water suitable, nickel-plated bright brass, Temp. -15°C to 120°C, Rp 1, DN 25, PN max. 40 bar
Brass ball valves in the standard series with fine adjustment.
Unlike our classic standard ball valves (open-close function), this model features a special stem technology that allows finely modulated opening and closing of the line.
The flow rate can be regulated extremely precisely as a result.
The cock is made of low-lead brass with a bare brass surface on the inside. It is thus safe to use with drinking water. This valve complies with the European standard EN 13828 and the working paper DVGW W 570.
Tehnični podatki in specifikacije
| Ohišje | Nickel-plated brass (outside), brass with a bare metal surface (inside) |
| Min. delovna temperatura [°C] | -15 |
| Max. delovna temperatura [°C] | 120 |
| Krogla | Chrome-plated brass |
| Krogelno tesnilo | PTFE |
| Stebelno tesnilo | PTFE / NBR |
| DVGW odobritev | DIN EN 13828:2003-12, DVGW W 570 |
| Material navojev | Brass with a bare metal surface |
| Kolo | Plastic |
| Navoj | Rp 1 |
| DN | 25 |
| Standardni navoj | Thread acc. to ISO 7/1 |
| L [mm] | 83.5 |
| A [mm] | 83.2 |
| B [mm] | 79.7 |
| PN [bar] | 40 |
