* slike so simbolične

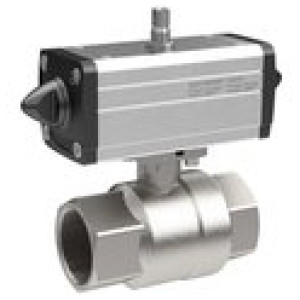

krogelni ventil medenina, pnevmatski vklop duble-acting, Rp 2
SKU: 158802RIE
EAN: 4047322635332
Brass ball valve, Pneumat. actuation drive, NAMUR, double-acting, Operating temp. -20 °C to 150 °C, Rp 2, DN 50, PN max. 16 bar
Ball valves with pneumatic actuator.
Pneumatic, double-piston, part-turn actuator, double-rocker principle.
Čas dobave 3 - 5 dni
420,41 €
ali od 11,18 € / mesec
Izračunaj obrok
Obrestno financiranje
- 11,18 € x 48 mesecev
- 14,29 € x 36 mesecev
- 20,53 € x 24 mesecev
- 39,30 € x 12 mesecev
- 76,88 € x 6 mesecev
- 152,05 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

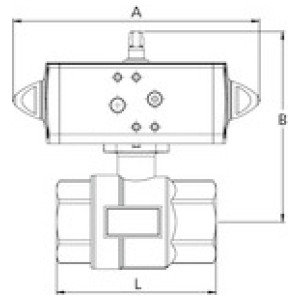

| Šifra | Adapter ventila | Navoj | DN | L [mm] | A [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 158829RIE | Supplied as standard | Rp 1/2 | 15 | 69.0 | 70.0 | 88.0 | Čas dobave 3 - 5 dni | 194,27 € |  | |
| 158828RIE | Supplied as standard | Rp 3/8 | 10 | 69.0 | 70.0 | 85.0 | Čas dobave 3 - 5 dni | 193,21 € | | |
| 158831RIE | Supplied as standard | Rp 1 | 25 | 89.0 | 70.0 | 98.0 | Čas dobave 3 - 5 dni | 219,93 € | | |
| 158830RIE | Supplied as standard | Rp 3/4 | 20 | 77.0 | 70.0 | 94.0 | Čas dobave 3 - 5 dni | 208,25 € | | |
| 158802RIE | Integrated to NAMUR | Rp 2 | 50 | 134.0 | 174.2 | 143.8 | Čas dobave 3 - 5 dni | 420,41 € | | |
| 158800RIE | Integrated to NAMUR | Rp 1 1/4 | 32 | 103.0 | 159.0 | 122.8 | Čas dobave 3 - 5 dni | 285,58 € | | |
| 158801RIE | Integrated to NAMUR | Rp 1 1/2 | 40 | 114.0 | 159.0 | 129.8 | Čas dobave 3 - 5 dni | 316,36 € | |
Opis
Brass ball valve, Pneumat. actuation drive, NAMUR, double-acting, Operating temp. -20 °C to 150 °C, Rp 2, DN 50, PN max. 16 bar
Ball valves with pneumatic actuator.
Pneumatic, double-piston, part-turn actuator, double-rocker principle.
Tehnični podatki in specifikacije
| Pogonski material | Anodised aluminium |
| Min. delovna temperatura aktuatorja [°C] | -20 |
| Max. delovna temperatura aktuatorja [°C] | 80 |
| Max. vodeni tlak aktuatorja [bar] | 8.4 |
| Priporočeni vodeni tlak [bar] | 5.6 |
| Min. delovni tlak krogelnega ventila [°C] | -20 |
| Max. delovni tlak krogelnega ventila [°C] | 150 |
| Max. delovni tlak krogelnega ventila [bar] | 16 |
| Material krogelnega ventila | Nickel-plated brass, with flange plate ISO 5211 |
| Premaz za krogelni ventil | PTFE / FKM |
| Premaz za pogon | NBR |
| Kot vrtenja [°] | 90 |
| Adapter ventila | Integrated to NAMUR |
| Navoj | Rp 2 |
| DN | 50 |
| Različica | double-acting |
| B [mm] | 143.8 |
| L [mm] | 134.0 |
| A [mm] | 174.2 |
