* slike so simbolične
krogelni ventil nerjavno jeklo, Pneumat. vklop, L-izpust
SKU: 103616RIE
EAN: 4047322076883
3-way stainless steel ball valve, Pneumat. actuation drive, L-hole, Operating temp. -20°C to 70°C, Rp 1, DN 25, PN max. 63 bar
3-way cock, reduced bore.
Pneumatic actuators, double- or single acting version and integrated end-position feedback.
Standardised interfaces:
Actuator/valve interface: Four or eight female threads in the actuator housing acc. to EN ISO 5211.
Actuator/control valve interface: Acc. to NAMUR or VDI/VDE 3845.
Actuator/signalling device interface: Acc. to VDI/VDE 3845 (NAMUR).
Povpraševanje
Material krogelnega ventila: Stainless steel 1.4401, with ISO flange plate
Pogonski material: Anodised aluminium
Premaz za krogelni ventil: PTFE / FKM
Različica: double-acting
A [mm]: 133.0
B [mm]: 148.5

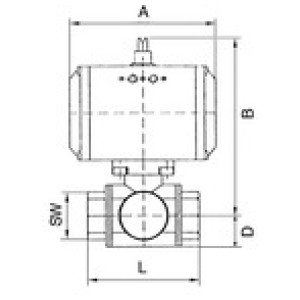

| Šifra | Navoj | D [mm] | DN | a/f [mm] | L [mm] | A [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 103614RIE | Rp 1/2 | 20.0 | 15 | 27 | 73.0 | 116.0 | 130.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 103615RIE | Rp 3/4 | 23.0 | 20 | 32 | 80.0 | 116.0 | 136.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103616RIE | Rp 1 | 28.5 | 25 | 41 | 90.0 | 133.0 | 148.5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103617RIE | Rp 1 1/4 | 36.5 | 32 | 50 | 90.0 | 133.0 | 153.5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103618RIE | Rp 1 1/2 | 37.0 | 40 | 55 | 105.0 | 137.0 | 173.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103619RIE | Rp 2 | 47.5 | 50 | 71 | 115.0 | 161.0 | 196.5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
3-way stainless steel ball valve, Pneumat. actuation drive, L-hole, Operating temp. -20°C to 70°C, Rp 1, DN 25, PN max. 63 bar
3-way cock, reduced bore.
Pneumatic actuators, double- or single acting version and integrated end-position feedback.
Standardised interfaces:
Actuator/valve interface: Four or eight female threads in the actuator housing acc. to EN ISO 5211.
Actuator/control valve interface: Acc. to NAMUR or VDI/VDE 3845.
Actuator/signalling device interface: Acc. to VDI/VDE 3845 (NAMUR).
Tehnični podatki in specifikacije
| Pogonski material | Anodised aluminium |
| Max. vodeni tlak aktuatorja [bar] | 10 |
| Priporočeni vodeni tlak [bar] | 5.5 |
| Max. obratovalni tlak [bar] | 63 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 70 |
| Material krogelnega ventila | Stainless steel 1.4401, with ISO flange plate |
| Premaz za krogelni ventil | PTFE / FKM |
| Premaz za pogon | NBR |
| Kot vrtenja [°] | 90 |
| Adapter ventila | Acc. to NAMUR |
| Navoj | Rp 1 |
| DN | 25 |
| Različica | double-acting |
| Položaj | L 2 |
| B [mm] | 148.5 |
| L [mm] | 90.0 |
| A [mm] | 133.0 |
| D [mm] | 28.5 |
| a/f [mm] | 41 |
