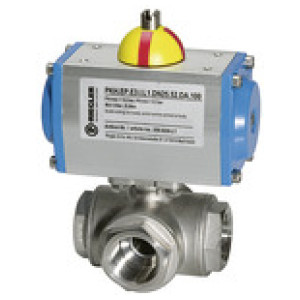

krogelni ventil nerjavno jeklo, Pneumat. vklop, L-izpust

SKU: 103620RIE
EAN: 4047322076944

3-way stainless steel ball valve, Pneumat. actuation drive, L-hole, Operating temp. -20°C to 70°C, Rp 1/2, DN 15, PN max. 63 bar

3-way cock, reduced bore.

Pneumatic actuators, double- or single acting version and integrated end-position feedback.

Standardised interfaces:

Actuator/valve interface: Four or eight female threads in the actuator housing acc. to EN ISO 5211.

Actuator/control valve interface: Acc. to NAMUR or VDI/VDE 3845.

Actuator/signalling device interface: Acc. to VDI/VDE 3845 (NAMUR).

Čas dobave 3 - 5 dni
543,33 €
ali od 14,46 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 14,46 € x 48 mesecev
  • 18,48 € x 36 mesecev
  • 26,54 € x 24 mesecev
  • 50,81 € x 12 mesecev
  • 99,39 € x 6 mesecev
  • 196,58 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi

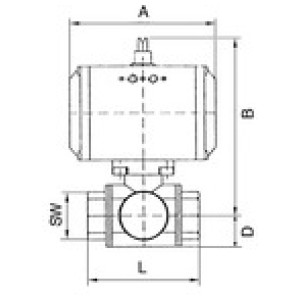

Šifra Navoj D [mm] DN a/f [mm] L [mm] A [mm] B [mm] Zaloga Cena Nakup Natisni
103625RIE Rp 2 47.5 50 71 115.0 209.0 213.5
Čas dobave 3 - 5 dni
1.566,89 € Natisni
103624RIE Rp 1 1/2 37.0 40 55 105.0 180.0 185.0
Čas dobave 3 - 5 dni
1.178,52 € Natisni
103621RIE Rp 3/4 23.0 20 32 80.0 137.0 159.0
Čas dobave 3 - 5 dni
633,57 € Natisni
103623RIE Rp 1 1/4 36.5 32 50 90.0 161.0 179.5
Čas dobave 3 - 5 dni
1.032,66 € Natisni
103622RIE Rp 1 28.5 25 41 90.0 161.0 174.5
Čas dobave 3 - 5 dni
789,77 € Natisni
103620RIE Rp 1/2 20.0 15 27 73.0 133.0 139.0
Čas dobave 3 - 5 dni
543,33 € Natisni

Opis

3-way stainless steel ball valve, Pneumat. actuation drive, L-hole, Operating temp. -20°C to 70°C, Rp 1/2, DN 15, PN max. 63 bar

3-way cock, reduced bore.

Pneumatic actuators, double- or single acting version and integrated end-position feedback.

Standardised interfaces:

Actuator/valve interface: Four or eight female threads in the actuator housing acc. to EN ISO 5211.

Actuator/control valve interface: Acc. to NAMUR or VDI/VDE 3845.

Actuator/signalling device interface: Acc. to VDI/VDE 3845 (NAMUR).

Tehnični podatki in specifikacije

Pogonski material Anodised aluminium
Max. vodeni tlak aktuatorja [bar] 10
Priporočeni vodeni tlak [bar] 5.5
Max. obratovalni tlak [bar] 63
Min. delovna temperatura [°C] -20
Max. delovna temperatura [°C] 70
Material krogelnega ventila Stainless steel 1.4401, with ISO flange plate
Premaz za krogelni ventil PTFE / FKM
Premaz za pogon NBR
Kot vrtenja [°] 90
Adapter ventila Acc. to NAMUR
Navoj Rp 1/2
DN 15
Različica single-acting
Položaj L 2
B [mm] 139.0
L [mm] 73.0
A [mm] 133.0
D [mm] 20.0
a/f [mm] 27
