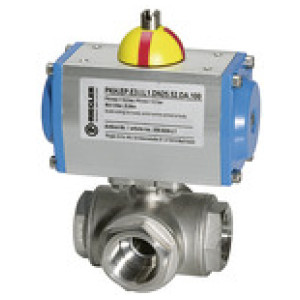

krogelni ventil nerjavno jeklo, Pneumat. vklop, T-izpust T1
SKU: 103629RIE
EAN: 4047322077934
3-way stainless steel ball valve, Pneumat. actuation drive, T-hole T1, Operating temp. -20 °C to 70 °C, Rp 1 1/4, PN max. 63 bar
3-way cock, reduced bore.
Pneumatic actuators, double- or single acting version and integrated end-position feedback.
Standardised interfaces:
Actuator/valve interface: Four or eight female threads in the actuator housing acc. to EN ISO 5211.
Actuator/control valve interface: Acc. to NAMUR or VDI/VDE 3845.
Actuator/signalling device interface: Acc. to VDI/VDE 3845 (NAMUR).
Povpraševanje
Material krogelnega ventila: Stainless steel 1.4401, with ISO flange plate
Navoj: Rp 1 1/4
Pogonski material: Anodised aluminium
Premaz za krogelni ventil: PTFE / FKM
Različica: double-acting

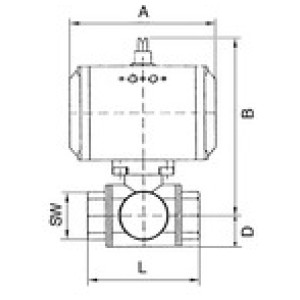

A [mm]: 133.0
B [mm]: 153.5
| Šifra | Navoj | DN | D [mm] | a/f [mm] | L [mm] | A [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 103626RIE | Rp 1/2 | 15 | 20.0 | 27 | 73.0 | 116.0 | 130.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 103628RIE | Rp 1 | 25 | 28.5 | 41 | 90.0 | 133.0 | 148.5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103629RIE | Rp 1 1/4 | 32 | 36.5 | 50 | 90.0 | 133.0 | 153.5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103630RIE | Rp 1 1/2 | 40 | 37.0 | 55 | 105.0 | 137.0 | 173.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 159746RIE | Rp 3/4 | 20 | 23.0 | 80.0 | 116.0 | 136.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | | |
| 159747RIE | Rp 2 | 50 | 47.5 | 71 | 115.0 | 161.0 | 196.5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
3-way stainless steel ball valve, Pneumat. actuation drive, T-hole T1, Operating temp. -20 °C to 70 °C, Rp 1 1/4, PN max. 63 bar
3-way cock, reduced bore.
Pneumatic actuators, double- or single acting version and integrated end-position feedback.
Standardised interfaces:
Actuator/valve interface: Four or eight female threads in the actuator housing acc. to EN ISO 5211.
Actuator/control valve interface: Acc. to NAMUR or VDI/VDE 3845.
Actuator/signalling device interface: Acc. to VDI/VDE 3845 (NAMUR).
Tehnični podatki in specifikacije
| Pogonski material | Anodised aluminium |
| Max. vodeni tlak aktuatorja [bar] | 10 |
| Priporočeni vodeni tlak [bar] | 5.5 |
| Max. obratovalni tlak [bar] | 63 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 70 |
| Material krogelnega ventila | Stainless steel 1.4401, with ISO flange plate |
| Premaz za krogelni ventil | PTFE / FKM |
| Premaz za pogon | NBR |
| Kot vrtenja [°] | 90 |
| Adapter ventila | Acc. to NAMUR |
| Navoj | Rp 1 1/4 |
| DN | 32 |
| Različica | double-acting |
| Položaj | T 1 |
| B [mm] | 153.5 |
| L [mm] | 90.0 |
| A [mm] | 133.0 |
| D [mm] | 36.5 |
| a/f [mm] | 50 |
